POE Recording System
4-channel POE Superior fanless embedded system with LGA 1151
Features
- LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
- Intel® Q170 Chipset
- 2x 260-pin DDR4 SODIMM. Max up to 32GB
- Triple independent display supported by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 4x Intel® GbE with PoE function
- 4x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0, 1, 5, 10
- 4x Full-size mini PCIe for communication or expansion modules, 4x SIM socket
- 4x RS-232/422/485 (w/ 2x internal), 6x USB 3.0, 2x USB 2.0, TPM 1.2
- 8x DI + 8x DO with Isolation
- 9 to 48VDC wide range power input supporting AT/ATX mode
- -25°C to 70°C extended operating temperature
Data Sheet
Explore other Marine CCTV Products
Discover our comprehensive range of Marine CCTV products, tailored for optimal surveillance and security at sea.
SURFVISION HD+
The NEW SURFVISION HD+ powered by Seatronx with Hilton Sat2Nav is the ultimate Fishing Camera…Explore Product
FENR-4200 series
Fanless Mini Computer with 8th Gen Intel® Core™ and Celeron® Processor, 2xLAN, 4xUSB 3.2…Explore Product
FENR-5000 series
Latest blogs and articles.
Check out some of the recent blogs from the experts at Seatronx

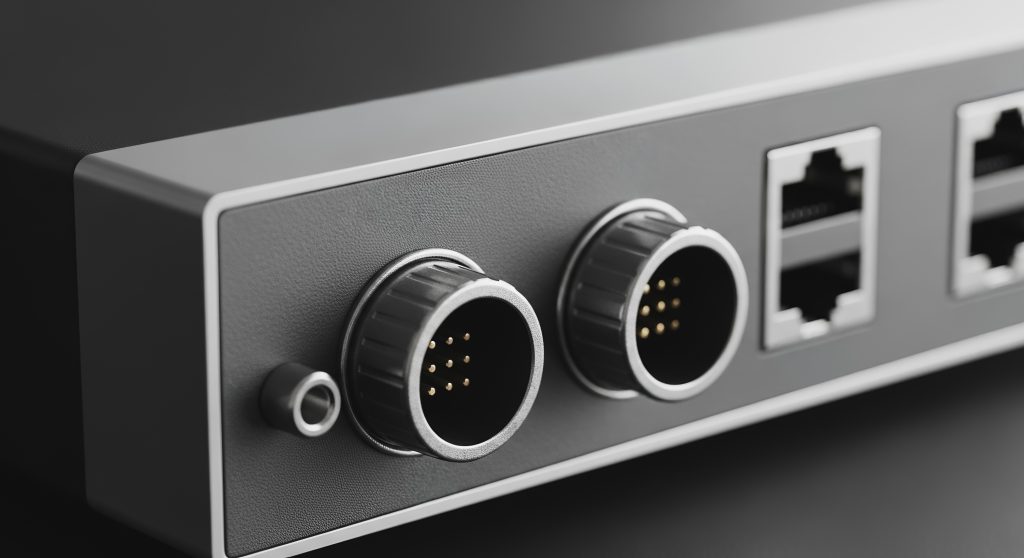

Which I/O Ports Does a Marine Panel PC Actually Need?
