Resolution sits between brightness and screen size on every marine display spec sheet, and it is the spec most often left to default. A modernization team will argue for weeks about nits, ingress rating, and mounting hardware, then quietly accept whatever panel the integrator ships, even if it is the same 1080p part used on a recreational fishing boat. That choice shapes how legible the chart, radar, and camera feeds look at three feet under bridge lighting, and how comfortably a watch officer can read them during an eight-hour watch.
This article walks through the pixel-density floor set by the international standards, the situations where 1080p is still the right answer at the helm, the decision moment to step up to WUXGA, QHD, or 4K UHD, and the tradeoffs that come with denser panels at sea. The goal is to give a procurement engineer or refit project lead a defensible reason for the resolution they put on the spec sheet, rather than a brand-by-brand catalogue.
Why Does Resolution Matter on a Marine Bridge?

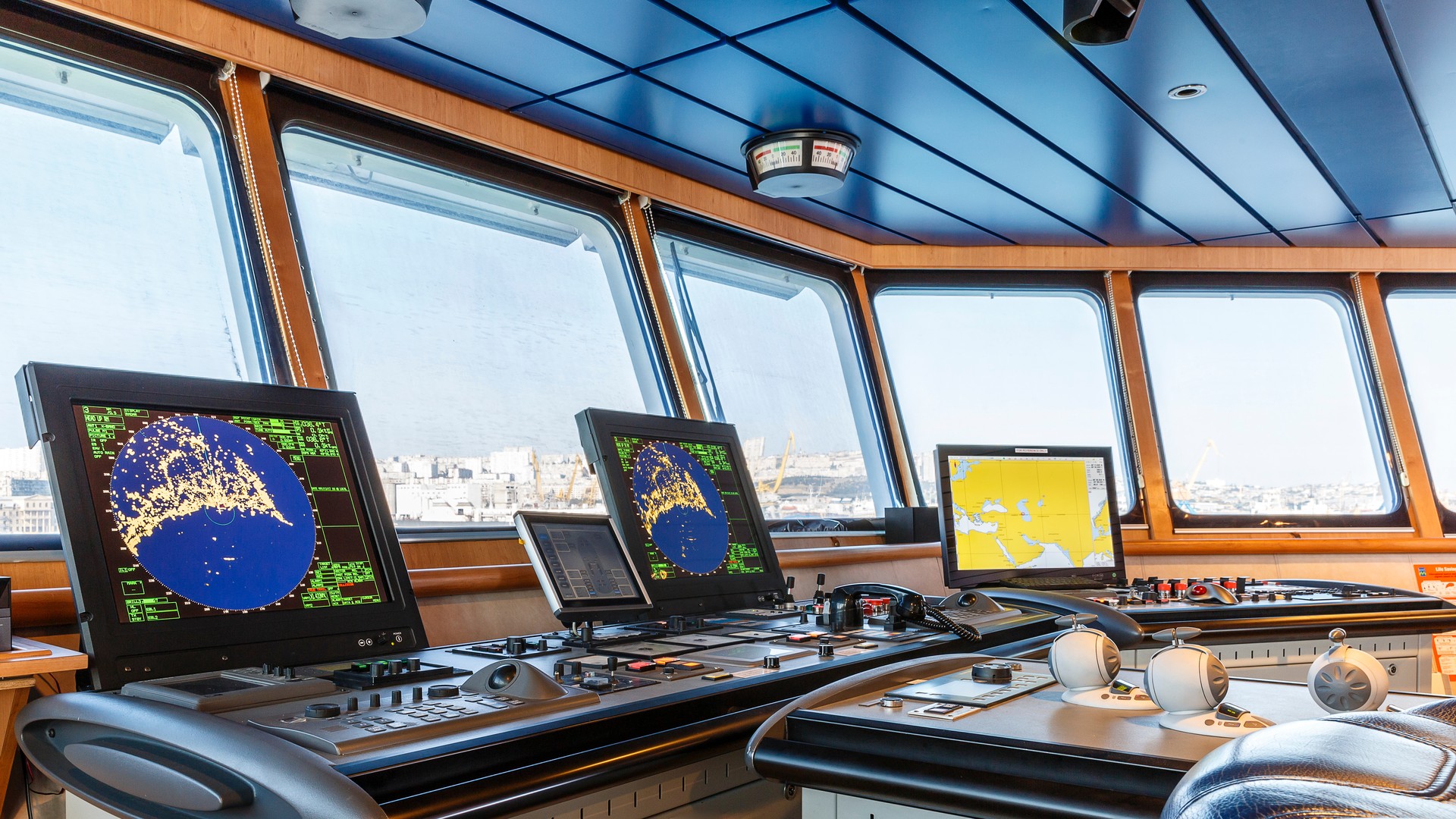

A bridge display is read at a much closer distance than a TV or a conference-room projector, and it carries far denser information. ECDIS draws S-52 chart objects, AIS targets, and route waypoints on the same plane. The radar overlays plot, track, and CPA vectors over those chart layers. The camera DVR throws a four-up grid of fixed-bridge, mast-head, engine room, and aft-deck feeds onto its slice of the panel. Every one of those layers carries text or symbology that has to remain legible while the watch officer scans across stations in fast sequence.
The variable that controls how all that information renders is not pixel count by itself, but pixel pitch — the physical distance between adjacent pixels. A 24-inch panel at 1920×1080 has a pixel pitch of roughly 0.276 mm. The same 24-inch panel at 3840×2160 has a pixel pitch of about 0.138 mm. Pull the operator back to a typical seated console distance of 28 to 32 inches and the 1080p pitch maps to about 31 pixels per degree of vision, while the 4K pitch lands near 62. The eye can resolve about 60 pixels per degree at 20/20 acuity, which is exactly the point where the panel stops being the limit and the operator’s eye becomes the limit.
Resolution also interacts with physical screen size and operator viewing distance. A 27-inch chart-table monitor viewed from a standing 36 inches needs different pixel real estate than a 19-inch radar-repeater monitor squeezed into a flybridge console at 18 inches. The right resolution is the one that lets the smallest piece of chart text, the smallest AIS triangle, and the smallest sensor overlay icon land on enough pixels to render cleanly at the actual operator distance for that station.
How Do IEC 62288 and IEC 61174 Set a Pixel-Density Floor?
For ECDIS, the floor is not a marketing target — it is a performance standard. IEC 61174 is the ECDIS equipment standard and references IEC 62288 for the presentation of navigation-related information. Between them they set a minimum chart-display area of 270 mm by 270 mm and a minimum effective pixel size at the chart layer. The S-52 chart symbology assumes the smallest legible mark renders as at least a 0.25 mm dot, which on a 0.276 mm pixel pitch is one pixel and on a 0.138 mm pitch is two pixels. That is why a type-approved ECDIS display has a clearly stated panel specification, not just a screen-size sticker.
In practice the floor pushes most type-approved ECDIS displays toward 1920×1080 on a 24-inch panel or 1920×1200 on a 24.1-inch WUXGA panel. A 22-inch 1080p panel still clears the 270 mm chart-area threshold, but it leaves very little headroom for the operator interface, the route panel, and the alarm bar that ECDIS draws around the chart. A 19-inch 1280×1024 panel does not clear it. That is the only hard line in the floor — once a display is past 1920×1080 at 24 inches, the standards no longer push the resolution further. Going to QHD, UHD, or 4K is an operator-comfort and multi-window decision, not a compliance decision.
Where the regulatory floor stops mattering
For non-ECDIS bridge roles — radar repeaters, alarm overview panels, CCTV monitors, machinery control HMI screens — the IEC pixel-density floor does not apply at all. Those displays are governed by the parent equipment standards (IEC 62388 for radar, IEC 62616 for BNWAS hardware presentation, and so on) which usually defer back to the display being legible at the operator station. The procurement engineer has to set the resolution floor for those screens based on the application, not a chart standard.
What Does 1080p Still Get Right at the Helm?
Despite years of pressure to default to 4K, full HD remains the right answer in several common bridge situations. A 22-inch or 24-inch 1080p panel hits the IEC chart-area floor, comfortably renders S-52 symbology, drives any GPU available in a marine bridge computer over a single HDMI 1.4 or DisplayPort 1.2 cable, and has the deepest spare-parts pool of any panel size at sea. For a single-vessel coastal operator running ECDIS plus one radar repeater plus one camera grid, 1080p is often the lowest-risk choice.
1080p also carries the cleanest support story. The HDMI 1.4 standard delivers 1920×1080 at 60 Hz over a 25-foot run without an active extender. DisplayPort 1.2 does the same. Cable runs through marine glands and bulkhead pass-throughs survive longer because the bend radius and shielding tolerances are forgiving at lower bandwidth. When a panel fails offshore, a 1080p replacement is in stock at every marine-electronics distributor in the world.
The other reason to stay at 1920×1080 is sensor video. Most marine camera channels still record at 1080p or below — thermal imaging cameras typically max out at 640×480 or 1280×1024, fixed-mount CCTV is usually 1920×1080, and even high-end docking cameras top out at 1920×1080. Upscaling 1080p sensor video to 4K introduces interpolation artifacts the operator will see at 28-inch viewing distance. A purpose-built dedicated bridge display rendering at the source’s native resolution looks sharper than the same source upscaled to a denser panel. The match between source resolution and panel resolution is more important on a bridge than the absolute pixel count.
When Should a Bridge Step Up to WUXGA or 4K?
The decision moment for higher resolution shows up in three patterns. The first is multi-window operation. A watch officer who needs ECDIS, radar, AIS list, and weather routing on one screen at the same time runs out of pixel real estate at 1920×1080. WUXGA at 1920×1200 buys back enough vertical space for a real alarm bar and a route panel. QHD at 2560×1440 lets the operator tile ECDIS at full S-52 resolution next to a radar repeater without either screen shrinking past readable. 4K UHD at 3840×2160 lets the same console host a four-up tile of ECDIS, radar, camera grid, and conning display, each rendered at near-1080p quality.
The second pattern is chart density. A pilot or master working coastal traffic separation schemes, restricted areas, and tightly spaced navigational aids gets more out of a denser panel than a deep-sea master crossing open ocean. The dense chart edition has hundreds of objects per square nautical mile; at 1080p the operator zooms in and out constantly. At 4K the same chart area can sit at one scale longer because the dot pitch resolves more detail without overscaling. The same applies to ENC layers viewed during port approach.
The third pattern is sensor video at native resolution. Newer marine camera systems output 4 MP, 5 MP, or 8 MP streams. A high-end dome camera installed for collision avoidance, low-light surveillance, or VIIRS-style maritime patrol delivers more detail than a 1080p panel can show. The same is true for an FLIR-class thermal sensor with a 1280×1024 detector — that signal renders cleaner at 1:1 on a 4K panel than scaled down to 1080p. When the sensors on the boat exceed 2 MP, the bridge display should match.
What about military and tactical consoles?
Naval and tactical consoles tend to drive the resolution decision further than commercial bridges. A combat information center workstation may host a radar PPI, a tactical data link picture (Link 16 or Link 22), an ESM signal display, and a sensor video feed at the same time. MIL-STD-3009 NVIS Class B compatibility adds a hard requirement that pixel intensity be controllable down to single-digit luminance for the night-vision goggle channel, and the panel-driver hardware that supports that dimming curve is more readily available on QHD and 4K panels than on 1080p. For those consoles a 4K UHD or higher native resolution is the default.
What Comes With Higher Resolution on a Vessel?
The tradeoffs at higher resolution are real, and the procurement engineer should price them into the spec sheet rather than discover them at sea trials. The first is GPU bandwidth and codec load. A bridge computer driving 4K at 60 Hz consumes about 12 Gbps of raw video data over the cable. HDMI 1.4 cannot carry it; HDMI 2.0 carries it cleanly to about 25 feet on passive cable. Beyond that the integrator needs fiber HDMI extenders or DisplayPort 1.4 with active marine-grade cable. The same bridge computer that comfortably ran four 1080p feeds may bottleneck at four 4K feeds even with a modern integrated GPU. That is why the marine bridge computing series before this article walked through GPU and codec-decode generation as a procurement spec, not an afterthought.
The second tradeoff is daylight readability. A 4K panel with the same backlight power as a 1080p panel renders each pixel with a quarter of the light per pixel. Maintaining the same bright-sunlight brightness at 4K requires a stronger backlight, which in turn drives heat dissipation in the sealed enclosure and pushes panel cost up. A marine panel rated for 1500 nits at 1080p is not automatically the same product at 4K — the bill of materials for the backlight, the thermal stack, and the power supply changes. Procurement engineers should not assume the spec carries across resolutions.
The third tradeoff is spares strategy and lifecycle. A vessel running 4K UHD ECDIS panels in 2026 will need replacement units in 2030 and 2035. That replacement pool is shallower than the 1080p pool at every marine distributor and at every defense supplier. A long-term operator who needs to source the same panel for the next two fleet refits will get more lifecycle out of an industrial 1920×1200 WUXGA pick than a consumer 4K pick. A purpose-built marine product line that maintains backward-compatible mounting cutouts, control buttons, and connector layouts across multiple panel resolutions makes that spares strategy easier. The Seatronx purpose-built marine display lineup is structured around that compatibility.
A short procurement framework
For most commercial bridges the practical answer falls into three resolution tiers. Tier one is 1920×1080 or 1920×1200 on a 22-to-24-inch type-approved ECDIS panel, paired with a marine bridge computer driving a single panel over HDMI 1.4 or DisplayPort 1.2 — appropriate for single-officer coastal watch or a recreational charter operation. Tier two is 2560×1440 QHD on a 27-inch panel paired with a Tier-three or better bridge computer over DisplayPort 1.2 or HDMI 2.0 — appropriate for deep-sea commercial bridges with multi-window watch operations. Tier three is 3840×2160 4K UHD on a 32-inch panel paired with a discrete-GPU bridge computer over DisplayPort 1.4 or fiber HDMI — appropriate for tactical consoles, autonomous vessel operations centers, and superyacht bridges hosting dense sensor video. The right tier is governed by the application, not the panel salesman.
Frequently Asked Questions
What is the minimum resolution for an ECDIS display?
IEC 61174 and IEC 62288 do not specify a single pixel count. They specify a minimum chart-display area of 270 mm by 270 mm and a minimum effective pixel size at the chart layer that lets S-52 chart symbology render at no less than 0.25 mm per smallest legible dot. In practice that pushes most type-approved ECDIS displays toward 1920×1080 on a 24-inch panel or 1920×1200 on a 24.1-inch WUXGA panel. A 19-inch 1280×1024 panel does not meet the floor. The procurement engineer should confirm the chart-area and pixel-pitch declaration on the type-approval certificate rather than trusting a marketing sticker.
Is 1080p enough for a marine bridge?
For a single-officer commercial coastal watch, a recreational charter operation, or a flybridge repeater station, 1920×1080 on a 22-to-24-inch panel is usually enough. It clears the IEC ECDIS pixel-density floor, drives over standard HDMI 1.4 or DisplayPort 1.2 cabling, matches the native resolution of most marine camera sensors, and has the largest spare-parts pool at sea. The case to go beyond 1080p shows up when the watch officer needs more than two windows on one screen, when the chart density is unusually high at port approach, or when the sensor video on the vessel exceeds 2 MP.
Does 4K make ECDIS charts easier to read?
4K UHD makes the smallest chart symbols and the smallest AIS triangles render with more pixel detail, which helps a pilot working dense coastal traffic or port approach. For deep-sea passages where the chart is mostly open ocean with widely spaced waypoints, the operator experience between 1080p and 4K at 24 inches and 28-to-32-inch viewing distance is marginal because the eye is the resolution limit, not the panel. The chart edition and the working scale matter more than the absolute pixel count.
What pixel pitch should a chart display use?
A reasonable working range is 0.20 mm to 0.30 mm pixel pitch for an ECDIS chart-display monitor mounted at 28-to-32-inch operator distance. Below 0.20 mm the eye cannot resolve the extra detail at that distance. Above 0.30 mm the smallest S-52 chart symbols start to render with visible aliasing and AIS triangles look pixelated. A 24-inch 1080p panel sits at about 0.276 mm and a 24-inch 4K panel sits at about 0.138 mm; the 0.138 mm pitch is over-spec for that distance unless the operator is closer or the panel is doing double duty as a camera-video monitor.
Can a marine display run at native 4K from any ship’s computer?
No. A 4K UHD panel at 60 Hz needs HDMI 2.0 or DisplayPort 1.2 or higher to receive a clean signal. Older bridge computers with HDMI 1.4 only output 4K at 30 Hz, which the operator will perceive as choppy when scrolling charts or panning a radar PPI. Long cable runs through bulkhead penetrations may need fiber-optic HDMI extenders or DisplayPort 1.4 active marine-grade cable. The procurement engineer should match the panel resolution to the bridge computer GPU output and to the cable run length before locking the spec.
Does higher resolution hurt sunlight readability?
It can, if the backlight is not specified up. Doubling the horizontal pixel count quarters the light per pixel for the same backlight power, which means a 4K panel needs roughly four times the backlight intensity to maintain the same peak luminance as a 1080p panel of the same size. A marine display rated for 1500 nits sustained at 1920×1080 is not automatically the same product at 3840×2160; the bill of materials for the backlight, the thermal stack, and the power supply changes. Daylight readability at 4K usually requires a higher backlight specification on the procurement sheet, not just a higher pixel count.
Where Should Marine Display Resolution Spec Work Begin?
Resolution is a procurement decision that should follow from the working application, not from a panel salesman. The right starting point is to list every signal source the panel will host at the same time — ECDIS, radar, camera grid, conning display, alarm overview — and the operator-station viewing distance at the helm. Compare that against the IEC 62288 and IEC 61174 chart-area floor for any panel that will run ECDIS, against the native resolution of every sensor that will share the panel, and against the cable run length and GPU output of the bridge computer behind it. From there the resolution tier should fall out as a defensible spec rather than a default.
Seatronx works with bridge integrators and refit teams to walk that spec process for new builds and modernization projects. Contact the Seatronx engineering team to review your application list, viewing distances, and bridge-computer plan, and to match a purpose-built panel to the resolution tier the bridge actually needs.
