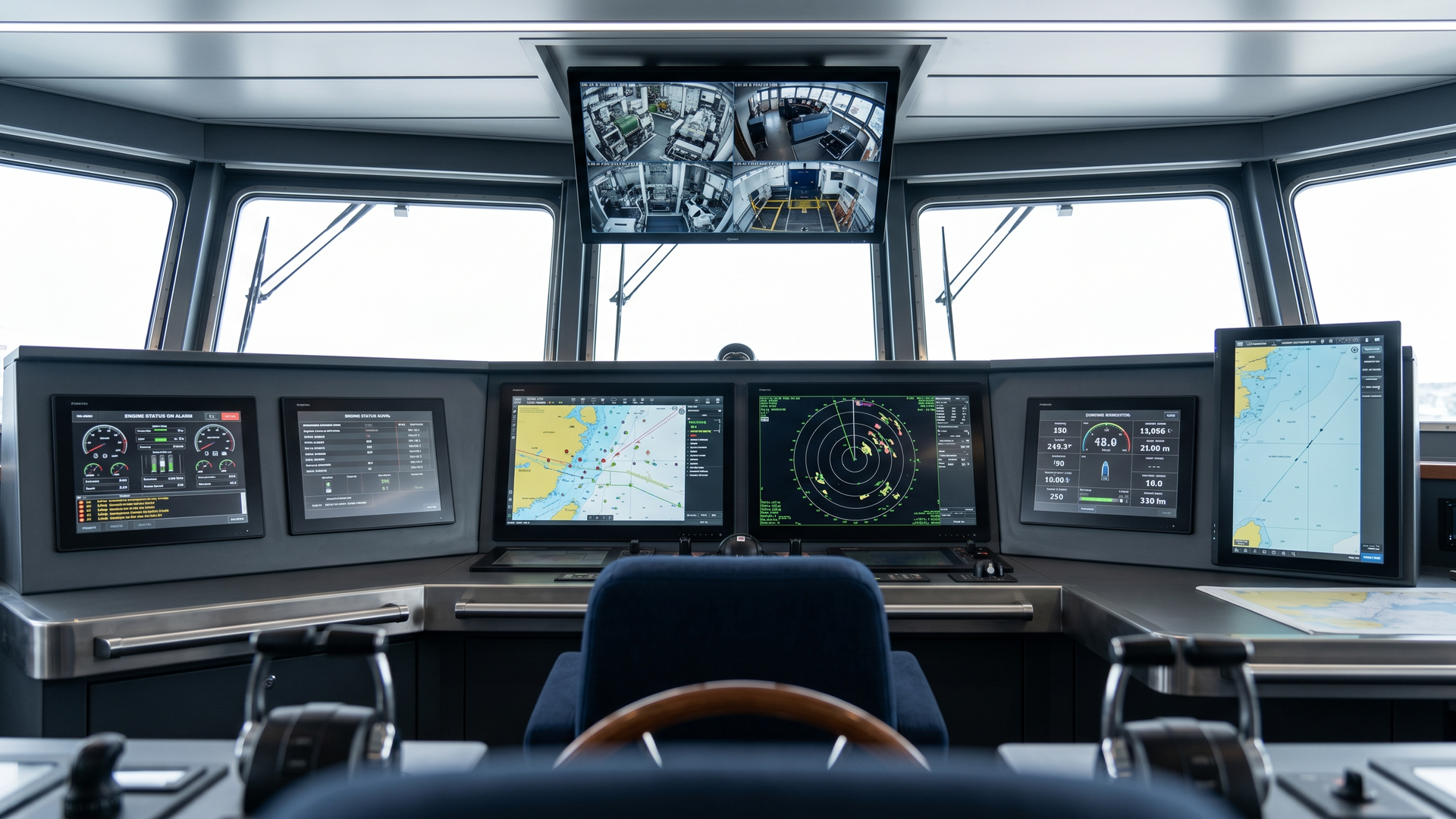

Most bridge upgrades stall on the same two questions: how big should each marine monitor be, and where exactly does it bolt in? A modern commercial bridge can carry anywhere from three to twelve fixed displays, and getting the sizing and mounting wrong costs more than just aesthetics. It costs glare on the chart screen at sunrise, an operator leaning forward to read AIS targets, a flush cutout that the spare panel will not fit, and a maintenance crew that has to dismount three monitors to swap one cable. None of those problems are display quality problems. They are layout problems decided long before the screens are bolted in.

This is a planning guide for marine integrators, fleet engineers, and bridge designers who have to commit to monitor sizes, screen counts, and mounting hardware before the install starts. The principles below apply whether you are spec’ing a new build, retrofitting an integrated bridge, or replacing aging consoles on a workboat. The goal is a bridge layout that an operator can read at a glance and a service technician can maintain without dismantling the console.

What Determines The Right Marine Monitor Size For A Bridge Station?

Screen size on a bridge is a function of three measurements: the operator’s eye-to-screen distance, the pixel pitch of the panel, and the size of the smallest text or icon the operator must read under stress. None of those map to “bigger is better.” A 32-inch monitor at a 28-inch helm position is too large; the operator’s eyes have to track across more arc than they can fixate, and peripheral icons get lost. A 19-inch monitor at a 60-inch chart table is too small; AIS target labels and depth-curve numbers get illegible the moment ambient light drops.

The practical math used by most marine integrators starts with the rule that 1 millimeter of character height should support roughly 2.5 to 3 meters of viewing distance for comfortable reading under bridge lighting. From there, screen size depends on the resolution of the panel and the smallest UI element your chart, radar, ECDIS, or camera software draws.

How Does Viewing Distance Map To Screen Size?

• Helm position, 28 to 36 inches from the operator: 19 to 24 inch monitors. Goes well for primary radar, ECDIS, conning displays, and engine status pages where the helmsman is seated or standing directly in front.
• Chart and planning table, 36 to 48 inches: 24 to 27 inch monitors. The chart screen needs more pixel real estate because chart layers, waypoints, and AIS overlay together produce a denser image than a radar return.
• Stand-back or overhead console, 60 to 96 inches: 32 to 43 inch monitors. Camera multiview, fleet status, and overview displays that the entire bridge team reads from across the wheelhouse.
• Mast-top or wing console: 15 to 21 inch sunlight-readable monitors with hardened bezels. Operators are usually standing, lighting is outdoor, and the screen has to survive direct spray.

For ECDIS-rated stations there is also a minimum effective screen diagonal that the IMO chart standard expects. A primary ECDIS chart needs a useful chart area on the order of a 320 by 240 millimeter rectangle, which in practice means most operators specify a 24 inch panel at the chart station, never a 19 inch. Picking the right brightness is a separate decision; planning how many nits a bridge display needs to stay legible at noon and at night is what keeps an otherwise correctly sized monitor from washing out.

How Many Marine Monitors Does A Modern Bridge Actually Need?

The honest answer is “more than the budget says and fewer than the spec sheet says.” The temptation on a refit is to scatter monitors at every console because monitors are visible, and visible upgrades are easy to sell. The discipline is to map every monitor to a primary role, a backup role, and a service plan before any of them are quoted.

A typical commercial bridge layout assigns displays by function, not by hardware. The functions usually are: ECDIS primary, ECDIS backup, radar, conning, engine and alarm pages, CCTV and bridge cameras, communications, and either AIS or a dedicated VMS. Some of those collapse into a single display when the vessel runs an integrated bridge software stack. Others have to stay physically separate because the regulations require independent power and independent operator input. The role-by-role thinking matters because it forces a question for every screen: what happens if this monitor fails at 0300 in heavy weather?

Redundancy planning is where most retrofits get cut short. The right minimum is N+1 sparing at the bridge level, plus a hot-swappable spare in storage. That means one extra monitor of the dominant size already mounted somewhere on the bridge, wired and ready to be reassigned, and one additional unit in the spare locker. On smaller vessels, the underway spare can double as a secondary CCTV head. On larger commercial bridges with a class society watching, the spare is usually a dedicated unit in a fold-down or retractable mount.

When Should You Standardize Sizes Across Stations?

Standardizing on one or two screen sizes across the whole bridge keeps the spare strategy realistic. A bridge with one 19 inch, two 24 inch, one 27 inch, and one 43 inch monitor needs four spare types, four sets of cables, four bezel kits, and a dock that knows the difference. A bridge built around 24 inch primary stations with one 32 inch overview screen needs two spare types and one set of mounting cutouts repeated up and down the console. That standardization is also why an integrated bridge system pays off long before the wiring runs are pulled: the hardware stack is decided once, and every station inherits the same maintenance plan.

What Mounting Style Fits Your Bridge Layout?

Once size and count are settled, the mounting decision shapes everything that comes after it: cable routing, IP rating at the bezel, service access, vibration tolerance, and how the console looks from the operator’s chair. The four mounting styles you will actually choose between are flush panel mount, U-bracket or yoke mount, VESA arm mount, and overhead or deckhead mount. Each one solves a different problem and creates a different one.

• Flush panel mount recesses the monitor into a console cutout, sealing the bezel against the console face. It is the cleanest look, it preserves IP66 or NEMA 4X ratings at the front face, and it makes the console easy to wipe down. The downside is that the cutout is permanent. Any future monitor of a different bezel size means re-machining the console panel.
• U-bracket or yoke mount bolts the monitor to a heavy steel or aluminum bracket that anchors to the console top or overhead. It is forgiving in the field because the same bracket can carry a slightly different monitor next refit, and the cable strain relief is easier to inspect. The cost is bridge real estate; a bracketed monitor takes more vertical clearance than a flush install.
• VESA arm mount uses a standard 75 by 75 millimeter or 100 by 100 millimeter pattern to attach the monitor to a swing arm, articulating mount, or pole. It is the right answer for engineering stations, chart tables, and any position where the operator needs to swing the screen for either a sit-down or stand-up posture. Marine-rated arms with locking joints are non-negotiable; a consumer office arm will not survive vibration in even moderate seas.
• Overhead or deckhead mount uses a folding hinge bracket fixed to the wheelhouse ceiling for overview and camera monitors that the entire watch reads at once. Cable management has to handle the swing radius without snagging, and the mount has to be rated for the dynamic loads of vessel motion plus the static weight of the panel.

The other under-discussed mounting variable is the console panel itself. Aluminum honeycomb consoles flex measurably more than welded steel, which changes how a flush-mounted monitor seals against the bezel gasket over time. If the console flexes by even a few hundredths of an inch under thermal cycling, a thin gasket will eventually break its seal and let in salt fog. Most commercial bridges that take spray over the bow specify a positive-pressure bezel seal and a backed-up panel cutout, not just a press-fit gasket.

How Do Flush-Mount Cutouts Affect Monitor Selection?

If the console is already cut for a specific bezel envelope, the replacement monitor has to match within roughly 3 millimeters on each axis or the gasket will not seal. That constraint dictates which display series you can specify on a retrofit. Sourcing from a manufacturer that publishes consistent bezel envelopes across a product family, like the wide-range marine displays built for bridge consoles, is what lets a fleet engineer commit to one cutout drawing that lives for ten or fifteen years across multiple hardware refreshes.

How Do You Plan Cable Routing, Power, And Signal Distribution?

The fastest way to break a working bridge is to plan cable distribution as an afterthought. Marine monitors on a bridge see four cable categories at minimum: video signal, power, USB or touch return, and ground. On larger bridges add a fifth: a KVM or matrix-switched control cable so the same monitor can host more than one source. Each one has its own length limit, shielding requirement, and bend radius, and ignoring any of them produces an intermittent fault that surfaces only when the vessel is offshore.

Native HDMI 2.0 runs are generally reliable to about 25 feet at 4K resolution before you need an active extender. DisplayPort is similar. For longer runs across a wheelhouse or down into a server cabinet, fiber HDBaseT, SDI, or DisplayPort-over-fiber extenders are the standard. Touchscreen return paths typically use USB, which runs reliably to about 15 feet before an active USB hub or USB-over-Cat6 extender becomes necessary. On any run that exceeds these thresholds, the integrator should specify the extender pair, not just the cable.

Power planning is the other failure mode. Most marine bridge consoles run on isolated 24 VDC, sometimes 12 VDC, with shore-power AC as a backup. The monitor’s input voltage range, isolation rating, and ground reference all need to match the bridge’s distribution scheme. A consumer monitor with a switching power brick rated for 110 to 240 VAC will run on shore power and fail the moment the vessel goes underway and the AC inverter cycles. Specifying marine-grade DC-native power supplies, or at minimum a marine-rated isolation transformer ahead of any AC monitor, is what keeps the bridge powered through generator transitions.

When Is A Video Matrix Worth Installing On A Bridge?

A video matrix or KVM-over-IP layer is worth installing the moment you have more than four sources feeding more than four displays, or when the bridge has to support a “captain’s mode” that re-routes screens to a single operator station during heavy weather. Below that threshold, hard-wired one-to-one runs are simpler to troubleshoot at 0300. Above it, the matrix lets the bridge team move radar, chart, or camera feeds to whichever monitor is most useful at the moment, which matters more than spec-sheet pixel counts. This is also a place where choosing between a multi-function display and a dedicated marine monitor changes the math; an MFD can carry more sources internally and pushes the need for an external matrix later in the build.

When Should You Bring In A Marine Display Specialist?

The bridges that age well are the ones where size, count, mounting style, and cable distribution were decided together, before any single monitor was ordered. The bridges that age poorly are the ones where each console was specified in isolation by whoever owned that subsystem. Bringing in a marine display specialist early, ideally during console concept and not during final commissioning, keeps the layout coherent across watchstations and keeps the spare strategy realistic. Seatronx works directly with integrators on bridge layout, retrofit cutouts, and lifecycle planning across commercial, military, and yacht builds. If a bridge refit or new build is in the planning stage, that is the right moment to align sizing, mounting, and signal distribution as one decision instead of three.

Frequently Asked Questions

What screen size is best for a marine bridge monitor?

The right size depends on the operator’s viewing distance and the role of the screen. A primary ECDIS or radar at a 28 to 36 inch helm position usually lands at 19 to 24 inches. Chart and planning stations at 36 to 48 inches typically need 24 to 27 inches of screen. Overview or camera multiview monitors viewed from across the wheelhouse run 32 to 43 inches. Picking by viewing distance, not by what looks big on the dealer floor, is what keeps text legible under bridge lighting.

Can you mount a standard office monitor on a vessel bridge?

Not for any production role. Standard office monitors are not rated for salt fog, vibration, shock, or the EMI environment around marine electronics, and they almost never accept native DC power. Even when they appear to work during dock trials, the failure mode under sustained vessel motion and humidity is rapid. A marine-grade monitor is built around those exact stressors, with sealed bezels, isolated power, and component selection that anticipates ten to fifteen years of duty cycle on a bridge.

How far away from a marine monitor will operators be?

Plan for three distinct distance bands. Helm stations are 28 to 36 inches. Chart and planning tables are 36 to 48 inches. Overview, camera, and overhead displays are 60 to 96 inches. Wing or mast-top monitors are usually viewed standing, between 18 and 36 inches. Every screen size and pixel pitch decision should be made with the actual operator distance for that station in mind, not a default office viewing distance.

Do marine monitors need 12V DC or AC power?

Most commercial and military bridges run on isolated 24 VDC, with some smaller workboats and recreational vessels using 12 VDC. Marine-grade monitors are designed to accept those DC ranges natively, sometimes 9 to 36 VDC, without an external power brick. Shore-power AC is acceptable on monitors with marine-rated isolation transformers ahead of the switching supply, but native DC is the cleaner install on any vessel that uses generators or inverters underway.

How many marine monitors should a commercial bridge have?

A typical commercial bridge runs six to ten fixed displays plus at least one underway spare. The mix usually includes a primary and backup ECDIS, a radar, a conning display, an engine and alarm page, a camera multiview, and either AIS or a dedicated VMS. Beyond that, count depends on watchkeeping practice, class society requirements, and whether the bridge runs an integrated software stack that collapses some of those functions onto multi-role monitors.

What is the maximum cable length for a marine monitor?

Native HDMI 2.0 and DisplayPort runs are reliable to roughly 25 feet at 4K. USB for touch return tops out around 15 feet. For anything longer, plan an active extender pair from the start: fiber HDBaseT or DisplayPort-over-fiber for video, an active USB hub or USB-over-Cat6 extender for touch. Specifying the extender during console design avoids the situation where the bridge works at the dock and fails after the first long run.

Should I use flush or bracket mounting on my bridge?

Flush mounting is the cleanest look and the best face-seal IP rating, and it is the right answer when the console is custom-built and unlikely to change for ten years or more. Bracket or yoke mounting is more forgiving on retrofits because it tolerates small dimensional changes between monitor generations. Engineering and chart stations almost always benefit from a VESA arm so the operator can adjust posture. Most modern bridges mix all three styles by station role.
