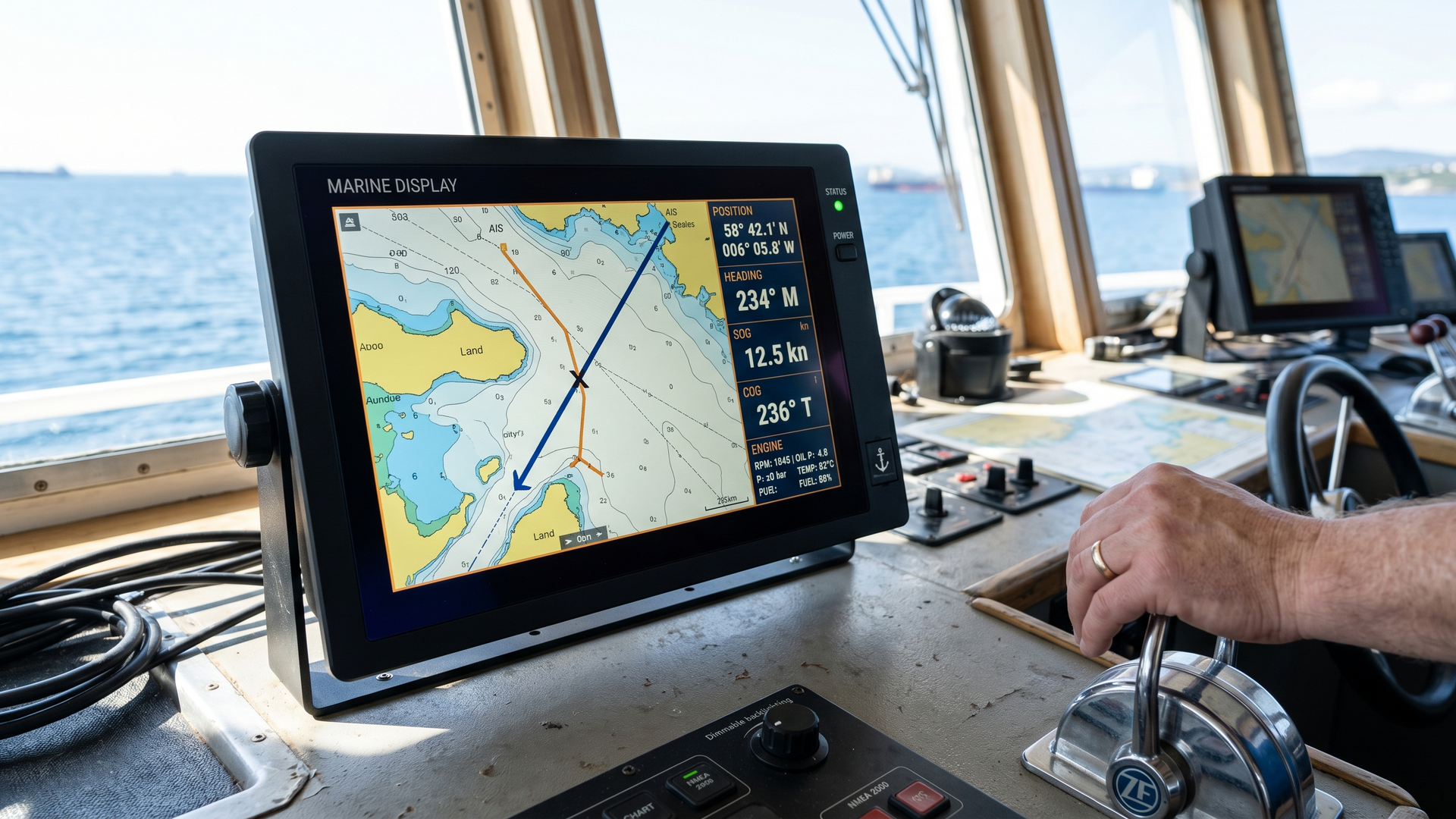

On a sportfishing boat at one in the afternoon in July, the sun comes through the windscreen at an angle that turns most LCDs into a mirror. The captain glances down to confirm the chart, sees their own face reflected back, and has to cup a hand over the panel to read a course change. Multiply that across an inland container ship, an offshore patrol vessel, or a yacht passing through the Caribbean, and brightness stops being a spec sheet line item and becomes whether the bridge is usable.

Why does brightness matter so much on a vessel bridge?

A typical office LCD is rated around 250 to 400 nits. The light hitting that screen at a desk is rarely above 500 lux. A bridge sees an entirely different load. Direct overhead sun easily delivers 50,000 to 100,000 lux at the surface of a console, and reflection off whitewater can roughly double the perceived glare angle through the windscreen.

There are three brightness problems on a vessel bridge that you do not have at a desk:

• Direct sun on the screen surface, which washes out the picture and reduces contrast to near zero.
• Reflection of the helm operator and surrounding cabin off the cover glass, which competes with the display content for the operator’s eye.
• Sun behind the operator, the worst case, where the screen has to outshine an environment that is already reading 100,000 lux.

A monitor that handles all three has to do more than a normal display. It needs higher peak luminance, low-reflectance optics, and either a transflective layer or a strong backlight to keep contrast usable in daylight. Without those, a bridge crew compensates by leaning, shading, or, most dangerously, guessing at chart and engine data they cannot read.

This is why purpose-built marine displays exist as a separate product class. When buyers compare a 700-nit industrial panel to a 1,500-nit marine unit, the spec gap looks like a two-times premium. In real bridge conditions, the gap is the difference between ‘I can use this’ and ‘I cannot use this between ten in the morning and four in the afternoon.’ That is the actual decision being made, even when the spec sheet hides it.

How many nits does a marine display actually need?

The honest answer is that it depends on where the screen lives, what it shows, and how often the sun reaches it. The ranges below are reasonable starting points after years of observed installs.

• Sealed wheelhouse, screens shaded by overhang, mostly indoor light: 700 to 1,000 nits is usually enough. Comparable to a high-end office monitor, with the marine durability layer added.
• Bridge with large forward windows, occasional direct sun: 1,500 to 2,000 nits. This is the most common requirement on commercial vessels and well-equipped sportfishing or yacht builds.
• Open helm, flybridge, exposed console with sun on the screen for hours per day: 2,500 to 3,000 nits or more. Anything below this washes out at noon in any latitude that gets meaningful sun.
• Mission-critical console where readability cannot fail under any condition (military, ECDIS-classed displays, search and rescue): 2,500 nits with active dimming, a transflective layer, or both.

A common mistake is to buy peak brightness without checking daylight contrast ratio. A 2,000-nit display behind cheap glass with no anti-reflective treatment can look worse than a 1,200-nit display with optical bonding and a quality coating, because reflected ambient light eats most of the brightness gain. Peak nits set the ceiling. Coatings and bonding decide how much of that ceiling you actually see.

Brightness also has to be weighed against the rest of the marine load, including how monitors hold up to salt, vibration, and thermal swings, because turning a backlight to its limit also raises operating temperature, and every marine display has a thermal envelope it must stay inside.

What about night operations and dimming?

Brightness is only half the spec. The same display that needs 2,500 nits at noon needs to dim down to 1 to 3 nits at night without losing color or going gray. Bridges that run twenty-four-hour rotations require a dimming range that reaches the low end without color shift, a red-only or low-blue night mode if the watch-stander needs to retain dark adaptation, and a backlight driver that does not flicker at low settings. Flicker is a common shortcut on consumer-grade panels and shows up immediately when a panel is dimmed below ten percent.

A display that is bright at noon but pegs at fifty nits minimum at night is unusable on a working bridge. Specify both ends of the dimming curve, not just the top.

Is brightness alone enough, or do coatings and bonding matter too?

Two displays of equal nit rating can look completely different at the same console. The difference is what sits between the LCD pixel and the operator’s eye.

There are two places where reflected light steals contrast on a bridge display:

• Surface reflection off the cover glass, about four percent per air-to-glass interface when untreated.
• Internal reflection off the air gap between the cover glass and the LCD itself, another four percent per interface, plus parallax.

Untreated, a typical display can lose roughly a quarter of its perceived brightness to reflection alone. Anti-reflective coating cuts the front-surface loss. Optical bonding eliminates the internal air gap and the second reflection.

This matters on a bridge because the operator’s eye does not care about the LCD’s peak brightness. It cares about the contrast between the chart line and everything else on the cover glass at that moment, including the operator’s own reflected face.

Adding the touchscreen layer in front of the LCD introduces another set of reflective surfaces. Choosing the wrong sensor stack can undo a high-brightness backlight before the photons reach the helm operator’s eye, which is why marine integrators specify the cover glass, the bonding, and the touch sensor as a single optical assembly rather than separate parts.

Anti-reflective coating versus optical bonding

These often get treated as the same upgrade. They are not.

• Anti-reflective (AR) coating is a thin-film treatment on the outer cover glass. It cuts the four-percent surface reflection down to roughly half a percent across the visible spectrum. Inexpensive, durable, does not change the build of the display.
• Optical bonding is a layer of optically clear adhesive between the cover glass and the LCD that eliminates the air gap. Removes the second reflection, removes parallax (the small offset between what the touch sensor sees and what the eye sees), and prevents condensation between the layers. More expensive, requires manufacturer-level integration, and is not field-installable.

For a daylight bridge, you want both: AR on the outside, optical bonding on the inside. Either alone helps. Together they make a 1,500-nit display behave like a much more expensive panel under the same noon sun.

How do you specify a sunlight-readable marine display without overpaying?

The shortcut is to anchor the spec to the worst light condition the screen will face, then back into the rest. Seven checks usually separate a usable spec from a wishful one:

• Peak brightness rating in nits, measured at the cover glass, not at the panel before the touch overlay.
• Daylight contrast ratio, measured under at least 10,000 lux of ambient light, not the marketing contrast number measured in a darkened lab.
• Dimming range that covers both the bottom (1 to 3 nits) and the smoothness of the curve in between.
• Optical bonding present, not ‘available.’
• Anti-reflective coating on cover glass.
• IP rating appropriate to the install location (IP65 minimum for sealed wheelhouse, IP66 or IP67 for an exposed helm).
• Operating temperature range that covers the actual deployment environment, not a North-American-summer assumption.

If a vendor cannot answer all seven without hedging, the display is not specified for marine bridge service. Period.

For mission-critical or military deployments, the bar is higher still. Military-grade rugged units typically add NVIS night-vision-compatible backlight modes, MIL-STD-810 environmental qualification, and sealed connector treatment that commercial marine displays skip. The spec sheet looks similar; the qualification testing behind it is not.

Where the sunlight-readable display series fits

For most commercial and yacht bridges that need true daytime readability without going to a military-spec budget, the sunlight-readable display series lands in the 1,500 to 2,500 nit band with optical bonding and anti-reflective coating already integrated. That combination, high nits with low reflection inside a sealed enclosure, is the price of admission to a usable daylight bridge. Below it, you save money and pay it back in operator strain. Above it, you start paying for capability that yacht and commercial bridges rarely need.

The right way to scope a screen swap is to walk the bridge with a hand-held lux meter at the worst time of day, record the ambient light at every console position, and size each spec to that worst case. A bright screen in the wrong location is wasted money; a dim screen in the wrong location is a safety problem.

Frequently Asked Questions

What is the minimum brightness for a sunlight-readable marine display?

The practical floor is around 1,000 nits if the screen is shaded most of the time and 1,500 nits if any direct sun reaches it. Anything below 1,000 nits is fine for a sealed cabin but not for a bridge with forward-facing windows.

Will a brighter backlight drain more power on the bridge?

Yes, but less than expected. Modern LED backlights are efficient enough that a 2,500-nit display draws roughly 30 to 60 percent more power than a 700-nit display of the same size, not three times more. Most marine power systems handle that without modification.

Can polarized sunglasses make a bright marine display look dim?

Yes, and this is one of the most-missed factors at spec time. Many LCDs polarize their output along one axis. Pair them with polarized sunglasses oriented the wrong way and the screen darkens or goes black. Marine-grade panels often use a circular polarizer or a re-rotated linear polarizer to stay readable through any sunglass orientation.

Does optical bonding actually reduce reflections on the bridge?

Yes, measurably. Bonding eliminates the air-gap reflection between the cover glass and the LCD, which removes one of the two main reflective sources and also removes parallax for touch input. On a bright day it can look like a brightness upgrade even though the backlight has not changed.

How long do high-brightness LED backlights last in marine service?

Typical marine-grade LED backlights are rated for 30,000 to 50,000 hours to half-brightness, even at sustained high-output settings. The limiting factor on a bridge is usually heat removal, not the LED itself.

Is a 1,000-nit consumer monitor good enough for a yacht helm?

For a fully shaded helm, sometimes. For an open or partially exposed helm, no. Consumer panels also lack the IP rating, vibration tolerance, and salt-resistant coatings that a marine bridge install needs in the first place.

Should every screen on the bridge be the same brightness?

No. The radar, the chart plotter, and the engine monitor often live at different angles to the sun. Spec each screen for its install location, not as a single uniform bundle.
