If you are speccing hardware for a SOLAS-class bridge, the words “ECDIS-ready,” “ECDIS-compliant,” and “type-approved” get used almost interchangeably in product copy. They are not the same thing, and the wrong choice can fail a flag state inspection, force a costly retrofit, or quietly degrade chart presentation in the exact conditions where it has to perform. This guide walks through what ECDIS compliance actually means at the display layer, which standards apply, and how to verify a screen will hold up to a type-approval audit instead of just looking the part.

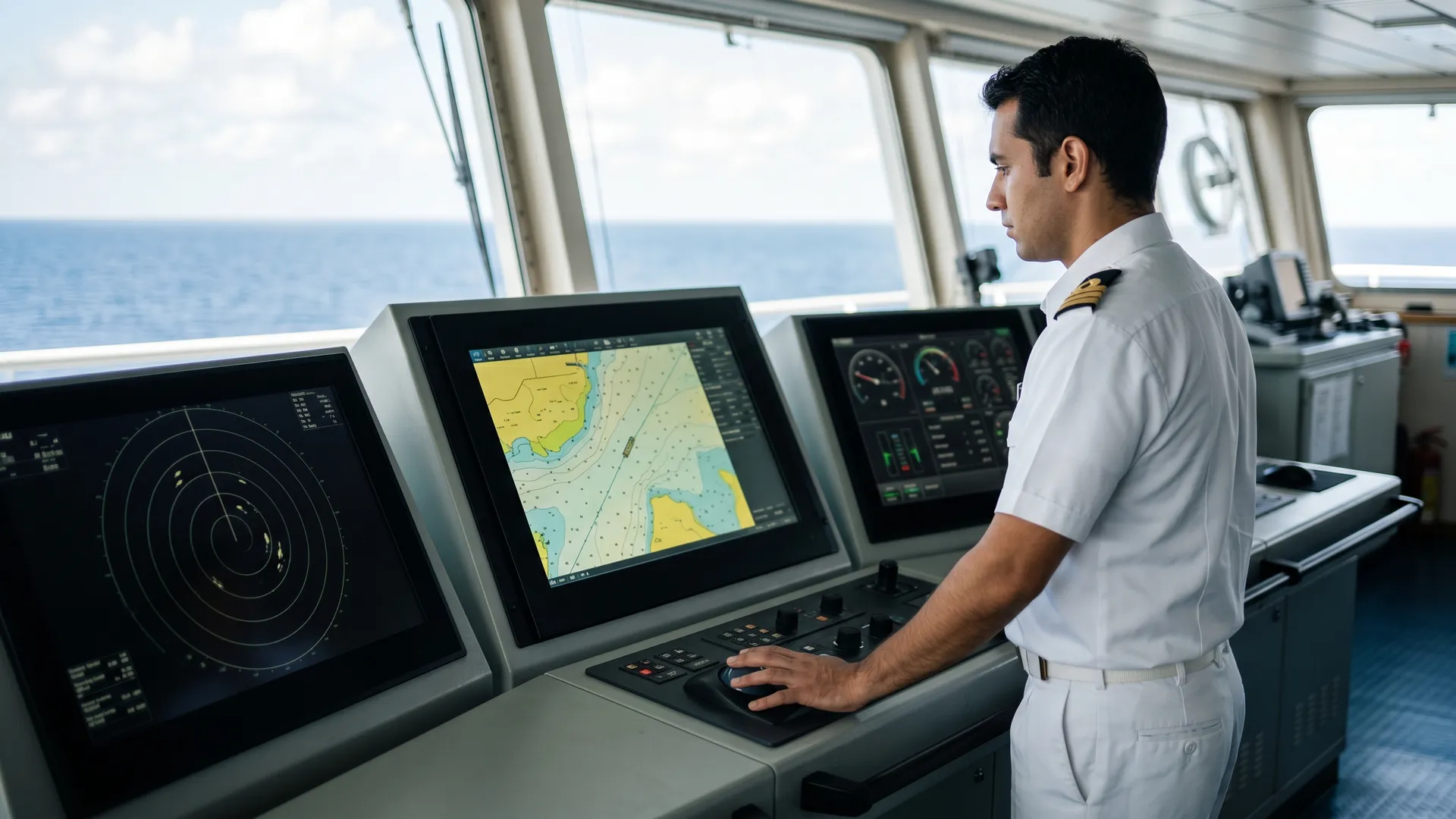

What Is ECDIS And When Is A Compliant Display Required?

ECDIS stands for Electronic Chart Display and Information System. It is the IMO-recognized digital replacement for paper nautical charts on commercial vessels, and on most SOLAS-class ships it is now a regulatory carriage requirement under SOLAS Chapter V, Regulation 19. The system is not just software. It is a tightly defined combination of an approved chart database (ENC), processing hardware, sensor inputs (GPS, gyro, log, AIS, radar), and a display that meets a specific set of performance standards. Replace any one of those pieces with non-compliant hardware and the system stops being an ECDIS in the regulatory sense, even if it still draws charts on a screen.

Who Actually Has To Carry An ECDIS?

The IMO carriage mandate phased in between 2012 and 2018 and now covers most cargo ships of 3,000 GT and above, all tankers of 3,000 GT and above, and passenger ships of 500 GT and above on international voyages. Many flag states extend the requirement further. Naval, coast guard, and offshore service vessels often follow the same standard even when they are not strictly bound by SOLAS, because charterers and port states audit against it. If a vessel falls into any of those categories and the ECDIS is the primary means of navigation, the display itself has to be type-approved as part of the system, not just plugged in alongside it.

Why Generic Marine Monitors Are Not Enough

Plenty of ruggedized marine displays look the part. They are sunlight-readable, sealed against spray, and certified for vibration and EMC. That is a strong baseline for chartplotters, radar repeaters, and engine monitoring stations, but the ECDIS standard adds a separate layer of color, contrast, and dimming requirements tied to chart symbology that most general-purpose marine monitors are not engineered to meet. Approving the wrong screen for an ECDIS station is one of the most common findings on a navigation audit, especially when a panel is replaced piecemeal during a refit.

Which Standards Govern An ECDIS Display?

An ECDIS display does not pass or fail one test. It has to satisfy a stack of overlapping standards that each cover a different layer of behavior. Understanding which standard does what makes it much easier to read a type-approval certificate and spot the gaps.

IEC 61174: The Performance Standard

IEC 61174 is the headline ECDIS performance standard. It defines what an ECDIS has to do as a system: route planning, route monitoring, alarms, route checking against safety contours, voyage recording, and chart updating workflows. When a manufacturer says a display has been “tested to IEC 61174,” they should be able to point to a written test report tied to a named bridge configuration. A display in isolation cannot really pass 61174 because the standard is system-level. What you are looking for is evidence that the display was part of a complete ECDIS that passed.

IEC 62288: Presentation And Display

IEC 62288 is where the screen itself gets evaluated. It covers presentation requirements common to all bridge equipment: minimum effective viewing area, contrast, color set behavior, brightness control across day, dusk, and night modes, response time, and how alerts and operator controls are presented. Most of the gotchas around ECDIS-compliant displays show up here. Color accuracy and dimming range in particular are tested against tighter limits than the general marine display market expects.

IEC 60945: Environmental And EMC

IEC 60945 is the baseline for marine navigation and radiocommunication equipment. It governs vibration, shock, salt mist, dry heat, damp heat, water exposure, EMC emissions, and immunity. An ECDIS display has to clear 60945 before any of the chart-specific standards even matter. If a product sheet quotes ECDIS compliance but is silent on 60945, treat that as a red flag – the bridge is not a benign environment, and a screen that has not been tested to those environmental limits has no business sitting at the helm.

IHO S-52 And S-57: Chart Presentation And Format

The International Hydrographic Organization’s S-57 standard defines the digital chart data format (ENC), and S-52 defines exactly how that data has to be drawn on screen. S-52 is the standard most directly tied to display hardware: it specifies the color tables for day, dusk, and night palettes, the symbol library, contrast minimums, and the calibration procedures the bridge crew runs to confirm the screen is rendering charts correctly. A display that cannot reproduce the S-52 color set across all three palettes is not usable for ECDIS, regardless of how rugged or bright it is.

Which Hardware Specs Matter Most For ECDIS Compliance?

Once the standards stack is clear, the hardware decision narrows down to a fairly specific set of measurable specs. These are the characteristics where ECDIS-compliant displays separate from general-purpose marine monitors.

Effective Screen Size And Resolution

IMO performance standards require a minimum effective chart area of 270mm by 270mm for the primary ECDIS display. That is the usable rendering area, not the diagonal of the panel itself. Most type-approved ECDIS stations land at 24 inches or larger in practice once you account for the surrounding interface elements, alerts panel, and route data sidebar. Resolution has to be high enough to render the S-52 symbol set without aliasing at typical viewing distance, which generally means full HD as a floor and 4K as the comfortable working point on the larger panels.

Brightness, Dimming Range, And Color Accuracy

This is where most non-compliant screens fail. ECDIS demands three calibrated palettes – day, dusk, and night – with smooth dimming all the way down to a low-luminance black point that protects night vision on the bridge. A standard sunlight-readable monitor often hits the high end well but cannot dim low enough at the bottom, or shifts color temperature as it dims. The color set defined in S-52 has dozens of distinct chart colors that have to remain distinguishable across all three palettes, and the IHO publishes a calibration test pattern (the color and grey scale check) that the screen has to pass at installation and during periodic verification. A display that drifts on this test will be flagged on a navigation audit even if everything else looks fine.

Viewing Angle, Glare Control, And Optical Bonding

Bridge operators rarely sit dead center on an ECDIS station. The display has to hold contrast and color across wide horizontal and vertical viewing angles, and it has to be readable through polarized sunglasses without going dark in the wrong orientation. Optical bonding between the cover glass and the LCD reduces internal reflections and condensation risk, which matters in a sealed enclosure that sees big temperature swings between watches. An anti-reflective coating that is too aggressive can hurt low-light performance, so the spec is a balance, not a single number.

Inputs, Redundancy, And Integration

The display has to integrate cleanly with the ECDIS computer through whatever video interface the system specifies (usually DVI, DisplayPort, or HDMI with a marine-grade lockable connector). Many bridges run a dedicated ECDIS computer such as a type-approved marine ECS computer behind the screen, and some operators prefer the all-in-one path of a marine ECDIS panel PC that combines the compute and display in one type-approved enclosure. Redundancy is also part of the standard – SOLAS-class vessels typically carry a second independent ECDIS, and that backup display has its own type-approval requirement.

How Do You Verify A Display Is Truly Type-Approved?

Marketing language is the weakest evidence in this category. “ECDIS-ready,” “ECDIS-compatible,” and “suitable for ECDIS” are not regulated terms. Type approval is, and there is a paper trail behind every legitimate claim.

Ask For The Type Approval Certificate

Every type-approved bridge component has a formal certificate, usually issued by a recognized class society or notified body acting under the flag state. The certificate names the model, the standards it was tested against (IEC 61174, IEC 62288, IEC 60945, plus relevant amendments), and the period of validity. If a vendor cannot produce that document on request, the product is not type-approved no matter what the brochure says. A display might be sold as part of an ECDIS bundle that carries one certificate, or as a standalone monitor with its own. Either is acceptable, but the paperwork has to match the way the bridge will actually be configured.

Confirm The Test Report Reflects The As-Installed Setup

Type approval is granted to a specific configuration. If the certificate covers a 24 inch display driven from a particular ECS computer with a defined cable assembly, swapping in a different cable, a different graphics card, or a panel of a different size can void the approval. Before signing off on a build, walk the proposed configuration line by line against the test report. This is one of the most common refit problems we see: the original ECDIS was approved years ago, a single piece was replaced as a like-for-like by part number, and the new part was not actually covered by the original certificate.

Run The IHO Calibration At Commissioning

Even a fully certified screen can drift in service. The IHO color and grey scale test pattern, run during sea trials and again at periodic intervals defined by the operator, confirms the screen is still rendering S-52 colors as specified. A failed pattern at commissioning often means a panel from a non-approved batch made it through quality control. A failed pattern years later usually means the backlight or panel has aged out and needs replacement. Either way, it is the moment where a paper certificate is checked against physical reality, and it is the moment most often skipped on vessels that struggle with chart presentation issues later.

Plan For The Lifecycle, Not Just The Install

An ECDIS display is in service for a long time, and the standards underneath it move. IEC 61174 has been amended several times. IEC 62288 has tightened presentation requirements. IHO S-52 has updated the symbol library. A display that was fully type-approved at installation can fall behind the current edition of a standard, and a flag state may require an upgrade or a re-test at a survey. Choosing a display from a manufacturer with a documented track record of issuing approval extensions when standards revise is far cheaper over the life of the vessel than chasing a one-time low price. For a deeper look at how marine displays survive the broader environmental load they sit in, see how marine display monitors handle harsh conditions.

What Should You Do Before You Buy?

Before any purchase order goes out, work through a short pre-buy checklist with the bridge engineer, the system integrator, and the supplier together. Confirm the carriage requirement that applies to the vessel and the flag state. Confirm whether the screen will be a primary or backup ECDIS, since both need approval but the integration paths differ. Get the type approval certificate, the underlying IEC 61174 and IEC 62288 test reports, and the IEC 60945 environmental report in writing. Verify the as-installed configuration against the configuration on the certificate. Plan the IHO calibration into commissioning. And specify spare parts and a service path so that a failure at sea does not strand the vessel without a compliant ECDIS.

If you are evaluating marine displays for an ECDIS-class bridge or planning a refit, our engineering team can walk through the certificate trail, match the screen to the rest of the bridge stack, and flag any approval gaps before they become audit findings. Contact Seatronx with the vessel class, intended ECDIS configuration, and target install date, and we will come back with the right hardware and the paperwork to prove it.

Frequently Asked Questions

What Is The Minimum Screen Size For An ECDIS Display?

The IMO performance standard requires a minimum effective chart area of 270mm by 270mm for primary ECDIS use. That is the usable chart rendering area on screen, not the panel diagonal. In practice, most type-approved primary ECDIS stations are 24 inches or larger to leave room for the surrounding control panels, alerts area, and route data without shrinking the chart window below the minimum.

Is IEC 61174 The Same As IEC 60945?

No. IEC 60945 is the general environmental and EMC standard that applies to almost all marine navigation and radio equipment. IEC 61174 is the ECDIS-specific performance standard. A type-approved ECDIS display has to clear both, plus IEC 62288 for presentation and IHO S-52 for chart rendering. Listing only one of those on a spec sheet is not enough.

Can A Standard Marine Monitor Be Retrofitted For ECDIS Use?

Sometimes, but only if the manufacturer has put the specific model through the full ECDIS test stack and issued a type approval certificate that covers the as-installed configuration. A general marine monitor that meets IEC 60945 is a good starting point, but it still has to clear IEC 62288 dimming, color, and presentation requirements and be integrated with a type-approved ECDIS computer and chart system. Retrofits are usually cleaner when the display, computer, and software are sourced as a pre-approved bundle.

Does The Backup ECDIS Display Also Need Type Approval?

Yes. SOLAS-class vessels using ECDIS as the primary means of navigation are required to have an independent backup arrangement. That backup is part of the navigation system, not a spare, and the display in the backup chain has to meet the same type approval standards as the primary. Cutting the backup down to a non-approved screen to save cost is a common audit finding.

What Is The Difference Between ECDIS-Ready And ECDIS-Compliant?

ECDIS-ready is a marketing term that usually means a display has the rough specs needed for ECDIS but has not been formally type-approved as part of an ECDIS. ECDIS-compliant should mean the screen has cleared the relevant IEC and IHO standards as part of a type-approved system, with paperwork to prove it. The difference matters because only the latter satisfies a flag state inspection. Always ask for the type approval certificate, not the marketing line.

Why Does ECDIS Require Calibrated Day, Dusk, And Night Palettes?

The S-52 standard defines exact chart colors that the bridge crew has to be able to distinguish in any lighting condition. A washed-out daylight screen can hide safety contours; a too-bright night screen destroys watchkeepers’ dark adaptation and the ability to see lights and traffic outside the window. The three palettes give the operator a calibrated set of presentations that keep chart symbology readable while preserving night vision. Without smooth dimming and faithful color reproduction at low luminance, an ECDIS display fails its core safety job.

How Often Does An ECDIS Display Need To Be Re-Verified?

The schedule is set by the flag state, the class society, and the operator’s safety management system. Most operators run the IHO calibration check at commissioning, after any service event that touches the display or its drivers, and at defined periodic intervals during the annual or special survey cycle. Drift on the calibration pattern is the early warning sign that the panel or backlight is aging out and needs to be planned for replacement before it forces an unscheduled stop.
