Marine display type approval is one of the most expensive, least understood specs on a data sheet. A salesperson says “type-approved.” A boat builder hears “certified for any commercial vessel.” A fleet manager hears “passed environmental testing.” A naval architect hears “scoped by class society against a specific performance standard.” All four people are looking at the same line item, and three of them are wrong.
For commercial buyers and refit operators, the question is rarely “is this display marine-grade?” It is “does this vessel actually require a type-approved display at the helm, and is the certification on this data sheet the certification flag-state regulators will accept?” Pleasure-craft owners almost never need type approval. SOLAS vessels almost always do. Everything between those two endpoints is where buyers get burned. This walk-through covers what type approval certifies, which vessels are required to carry it, where IEC 60945 testing fits in, and how to verify the certificate that comes attached to the quote.
What Does Type Approval Actually Certify on a Marine Display?
Type approval is a documented declaration, issued by a recognized classification society or maritime administration, that a specific make and model of equipment has been tested against a defined performance and environmental standard and meets it. The certificate names the manufacturer, the model number, the test reports it relied on, the standards applied, and any conditions of use. It is not a generic “marine quality” award. It is a paper trail tied to a serialized product family.

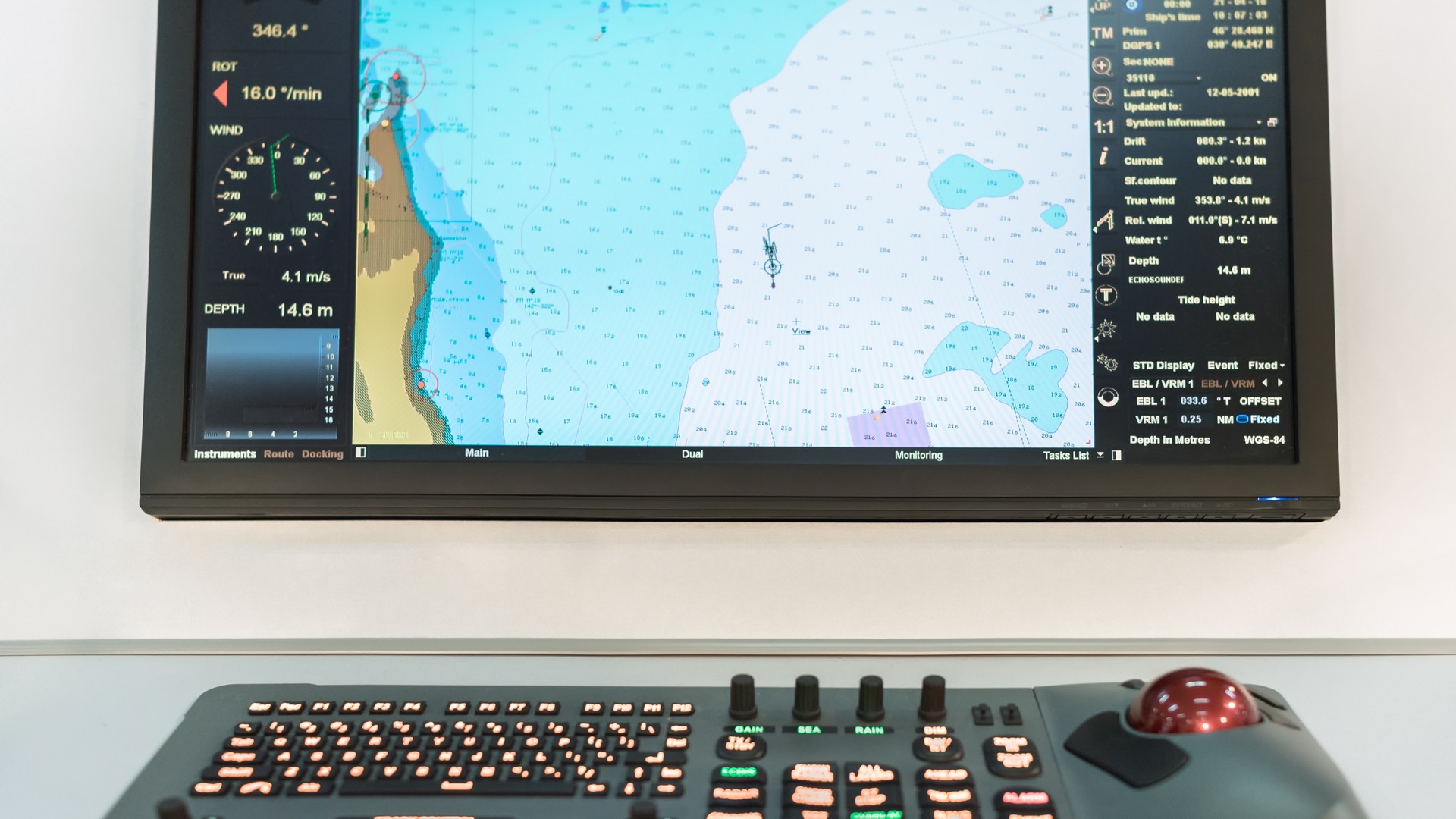

For a bridge display, that paper trail typically rolls up several layers of testing into one certificate. The environmental layer is IEC 60945, which covers vibration, shock, temperature cycling, salt mist, drop test, and electromagnetic compatibility for shipborne equipment exposed to a wheelhouse environment. The chart performance layer, when the display is intended for navigation, can include IEC 61174 for ECDIS or IEC 62288 for presentation of navigation-related information. Ingress is bundled inside the standard through a defined enclosure category. If the display will also host radar overlay, IEC 62388 enters scope. The certificate ties the unit to whichever combination its intended role requires.
What the certificate does not say is almost as important as what it does. Type approval does not guarantee a particular pixel count, brightness ceiling, viewing angle, or color gamut. A 600-nit display and a 1,600-nit display can both hold the same type approval if both pass the test bench at minimum required brightness. Approval also does not extend to firmware revisions outside the test report. If a vendor ships a firmware update that changes the menu or alarm behavior, the certificate technically applies to the firmware that was tested. This matters during commissioning surveys and PSC inspections.
One more clarification that catches buyers: type approval covers the unit’s behavior, not the installer’s behavior. A type-approved bridge display installed without proper compass-safe distance, grounding, or cable shielding will still fail a survey. The certificate gets you to the dock; the installation drawings and the integration package keep you there.
Which Vessels Are Required to Use a Type-Approved Display?
The strict answer is driven by flag state, vessel size, and intended trade. SOLAS Chapter V applies to commercial vessels engaged in international voyages above the size thresholds set by the convention, and it pulls in carriage requirements for ECDIS, radar, AIS, and navigation displays. The implementing IMO performance standards reference IEC test standards, and those test standards are the basis for the type-approval certificates that surveyors expect to see on board. If a vessel is required to carry ECDIS under SOLAS V/19, the ECDIS workstation — including the display — must be certified against an ECDIS chart presentation standard and approved by a recognized organization.
Outside SOLAS, the picture is messier. European-flagged vessels handling carriage equipment under the Marine Equipment Directive (MED) need wheelmark-approved equipment, which is an EU-specific framing of type approval. United States Coast Guard inspected vessels under subchapters that reference SOLAS-equivalent gear pull in the same expectation. Offshore supply vessels, ferries on regulated routes, fishing vessels above defined tonnage, and naval auxiliaries each carry their own carriage requirements. Workboats under coastal exemptions may not be required to carry type-approved displays at all, but their insurer or charterer often is — and that often forces the same outcome.
Naval and government procurement runs in a parallel track. A Coast Guard cutter, a Navy auxiliary, or a research vessel often spec their bridge displays against a contract that names specific approvals plus military environmental standards. The line items look familiar — IEC 60945 plus a class certificate — but the procurement may also require MIL-STD-810 environmental testing and MIL-STD-461 electromagnetic compatibility on top of the civil maritime certifications. That stack is what separates a rugged commercial bridge display from a true mission-critical one for the Navy or Coast Guard.
Pleasure craft, charter boats under domestic exemption, and most workboats operating inside a port boundary fall outside mandatory type approval. That does not mean a marine-grade display is wrong for those vessels — it usually is the right choice — only that the certificate is not a regulatory requirement. The buyer is paying for durability, sunlight readability, IP protection, and warranty support, not a class society stamp.
Is IEC 60945 the Same Thing as Type Approval?
This is the most common confusion on a quote sheet, and it costs commercial buyers real money when they get it wrong. IEC 60945 is the underlying test standard for general environmental requirements on shipborne navigation equipment exposed to the bridge or weather deck. It covers temperature, vibration, shock, salt mist, EMC, safety, and a compass safe distance measurement. It is a test, not a certification regime. A display can pass IEC 60945 in a third-party lab without ever being type-approved by a class society. Some manufacturers state “compliant with IEC 60945” on the data sheet to signal that the unit was built and tested to that standard, even when no formal class-society certificate exists for the product.
Type approval, by contrast, is a certificate issued by a recognized body that says the equipment has been tested by an accepted laboratory and reviewed by the certifying body, and that the body will accept the documentation during a survey. The relationship is straightforward: IEC 60945 is the test standard that type approval relies on for environmental compliance. Type approval requires IEC 60945 testing as one of its inputs. IEC 60945 compliance, on its own, does not produce type approval.
Practically, “IEC 60945-compliant” on a quote means the manufacturer believes the unit would pass the standard, often backed by a third-party test report. That is enough for many commercial workboats, government procurement under domestic standards, and refit projects on vessels that are not subject to SOLAS carriage. It is not enough for SOLAS-class ships needing a class certificate on file. A buyer pulling specs for a workboat fleet will sometimes pay for a fully type-approved bridge display they did not need, simply because the procurement document never separated the two concepts. A buyer pulling specs for a SOLAS-class ship will sometimes try to substitute IEC 60945 compliance for type approval, and the unit will fail PSC inspection.
The other adjacent confusion is between environmental compliance and chart performance. Passing IEC 60945 says the display will survive the bridge environment. Passing IEC 61174 says the display will present ECDIS chart data correctly. Both are inputs to ECDIS type approval, and a display certified for general marine navigation might not be certified for ECDIS specifically. The data sheet may list both; the buyer needs to check both, plus the enclosure ingress rating the certificate ties to.
How Do You Verify a Display Is Actually Type-Approved?
Marine display type approval verification is the same routine regardless of which class society or maritime administration is involved. Start with the certificate number. A real type-approval certificate carries an issue number, a manufacturer name, a model number, an issue date, an expiry date, and the standards it was tested against. The certificate should name the recognized organization (DNV, ABS, Lloyd’s Register, ClassNK, RINA, BV, RMRS, CCS, or a maritime administration such as the USCG, MCA, or Transport Canada). Each of these bodies maintains a public register of issued certificates. The certificate number on a quote should resolve in that register to the same manufacturer and model on the data sheet.
Second, match the model to the certificate exactly. Type approval is granted to specific configurations of specific models. If a vendor offers a 19-inch sunlight-readable display in three brightness variants and only the 1,000-nit variant was tested, the certificate likely covers only that variant. A buyer specifying the 1,500-nit version may be quoted “the type-approved series” when the configuration being shipped is not on the certificate. This is one of the most common quiet substitutions during a refit. Confirm part number, screen size, and configuration line by line.
Third, confirm the standards the certificate covers against what the vessel actually needs. A bridge display certified to IEC 60945 plus IEC 62288 is approved for general navigation presentation. A bridge display also certified to IEC 61174 is approved for ECDIS. If radar overlay is required, IEC 62388 enters the picture. If the vessel is wheelmarked under the EU MED, a wheelmark certificate is the artifact the surveyor wants to see. The certificate either covers the relevant standards or it does not — there is no partial credit.
Fourth, check the certificate expiry and any conditions of use. Type approvals are typically valid for five years, sometimes shorter, with renewal predicated on continued conformity assessment. A certificate that expired during commissioning is a problem. Conditions of use can also limit how the display is installed — for example, mounting orientation, ambient temperature range, or cable length to associated equipment. Surveyors do read these conditions during inspection. A buyer evaluating Seatronx’s marine display lineup for a SOLAS refit should be able to ask, “Which model on this page has a current type-approval certificate from which body, and what standards does it cover?” and get a clear documentary answer.
Finally, retain the documentation. Class surveyors and port state control inspectors expect the certificate to be available on board or in the vessel’s electronic document system. The integrator typically delivers the certificate as part of the as-built handover package. If it is not handed over at commissioning, ask for it before the final invoice is paid.
What Belongs in Your Next Display Spec?
The decision tree is short. If the vessel is SOLAS-class or pulls a SOLAS-equivalent carriage requirement through its flag state, the bridge display needs type approval, and the spec needs to name the certifying body, the standards, and the role (general nav, ECDIS, radar overlay) the certificate must cover. If the vessel is a workboat, a coastal commercial vessel, or a government vessel under a domestic standard, the spec needs to follow whatever the contract or the underwriter requires, and that may stop at IEC 60945 compliance with a documented test report. If the vessel is a pleasure craft or a charter boat outside mandatory carriage, the spec can stop at “marine-grade” with verified ingress protection, sunlight readability, and warranty terms.
Talk to a Seatronx applications engineer before locking the spec for a commercial or naval program. The right answer often is a model already on the marine bridge computer family page with a current certificate; sometimes it is a configuration the team will build to your installation drawings. Either way, getting the certification scope right before procurement saves a survey failure later.
Frequently Asked Questions About Marine Display Type Approval
Does every marine display need type approval?
No. Type approval is a regulatory requirement for vessels that fall under SOLAS carriage rules or equivalent flag-state requirements. Pleasure craft, most charter boats, and many domestic workboats do not need a type-approved display. Marine-grade construction, verified ingress protection, and sunlight readability matter on every boat. The class society certificate matters only when carriage rules or a procurement contract require it.
Who issues marine display type approvals?
Recognized classification societies (DNV, ABS, Lloyd’s Register, ClassNK, RINA, BV, RMRS, CCS) and maritime administrations (USCG, MCA, Transport Canada, the European MED notified bodies) issue type-approval certificates. Each body has its own register, but the underlying standards are largely harmonized through IMO performance requirements and IEC test standards. The certifying body should be one that the vessel’s flag state and class society both accept.
How long does type approval last?
Most marine type-approval certificates carry a five-year validity, subject to ongoing conformity assessment by the certifying body. Some are shorter. Renewal usually requires the manufacturer to demonstrate continued conformity, often with sample retesting or audited production records. A certificate that expires during a long refit window can create commissioning problems, so verify the expiry date before procurement, not after delivery.
Is wheelmark certification the same as type approval?
Wheelmark is the EU-specific implementation of type approval under the Marine Equipment Directive. Equipment carrying the wheelmark has been certified by an EU notified body against MED-harmonized standards and is accepted on EU-flagged vessels. It is functionally equivalent to a class-society type approval for vessels in scope, and it is the certificate EU surveyors expect. Non-EU vessels may still recognize wheelmark certificates depending on flag-state policy.
Can you upgrade a non-approved display to a type-approved one mid-refit?
Yes, but the lead time is the constraint, not the engineering. Type-approved displays often share a chassis and panel with a non-approved sibling model, but the firmware, cabling, and installation drawings are usually scoped to the certified configuration. The integrator will need the certificate, the conditions of use, and any class-society installation guidance before the swap. Plan the change into the refit schedule rather than treating it as a drop-in upgrade.
Does type approval cover firmware updates?
Type approval covers the firmware revisions that were submitted with the test report. Manufacturers maintain approved firmware lists and version control as part of conformity assessment. A field update that introduces new alarm behavior, menu changes, or chart-rendering logic typically needs to be on the approved list to keep the certificate valid. Ask the vendor for the current approved firmware version before accepting any update on a SOLAS-class vessel.
