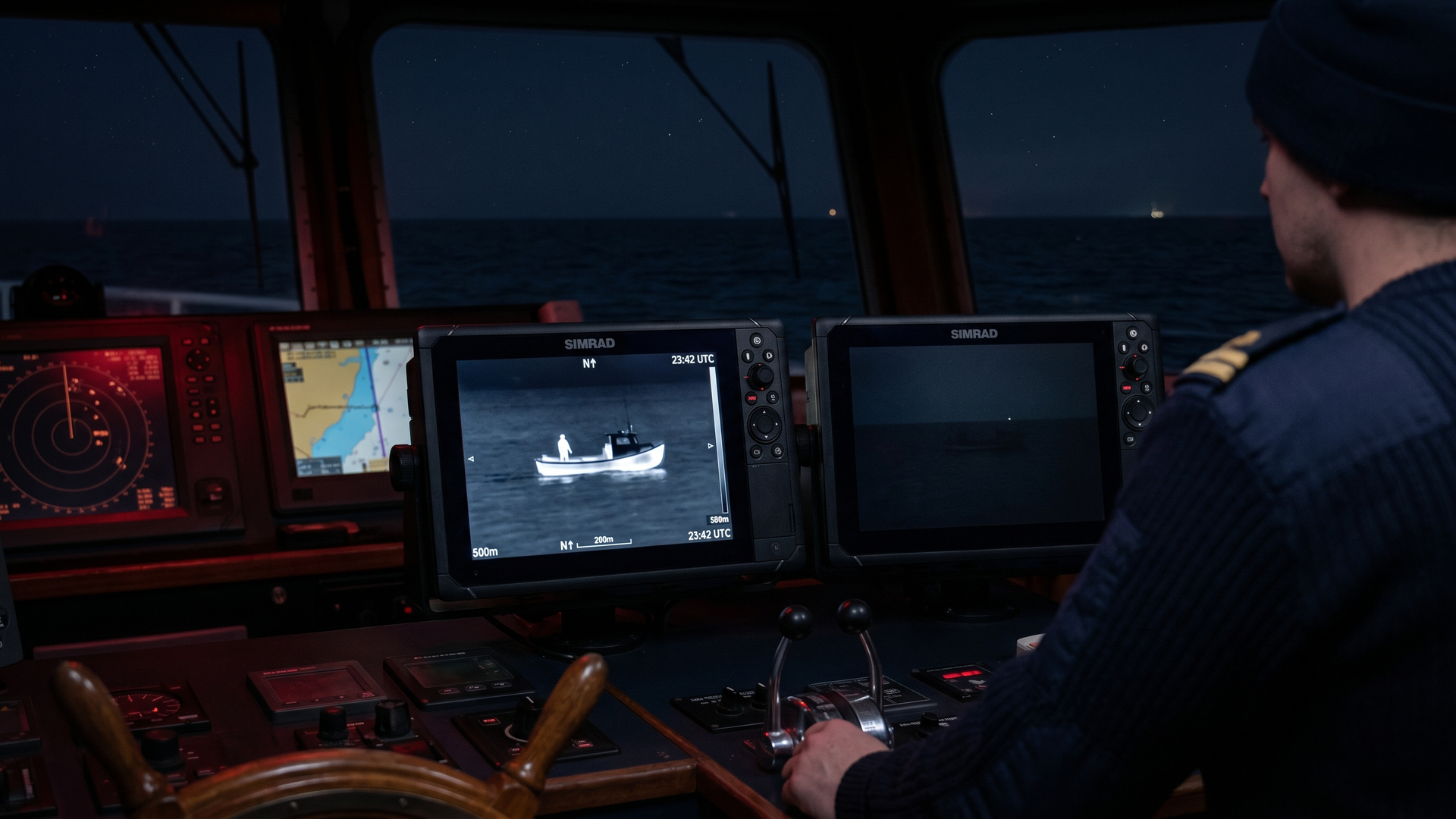

The radar picture is clean and the chart says you have plenty of water. Then a small fishing skiff with no lights drifts across the channel at two in the morning, and the deck crew sees it only because the helm thermal feed lit it up like a candle against the cold ocean. That moment is what a marine thermal camera changes about a night watch. Buyers ask whether thermal imaging is a luxury, a sportfish toy, or a real operational tool that earns its place on a bridge. The answer depends on what waters you operate in, how often the watch officer has to make decisions in poor visibility, and what the rest of the helm electronics are already doing.
This guide walks through where thermal earns its keep, what the technology actually shows you, which vessel classes benefit most, and how to specify a unit that will still be doing useful work three years into a salt-air service life.
Why Add a Thermal Camera When You Already Have Radar?
Radar is excellent at the long game. It paints metal hulls, navigation marks, and weather cells from miles out, and modern solid-state X-band sets can resolve small targets reliably when the sea state cooperates. What radar will not do is tell the watch officer what the target is, where the people are on it, or whether the deck has a small boat tied off the stern that may break loose. That gap is where heat-based imaging earns its place.
A bridge camera that reads infrared energy sees the warm signature of a human, an exhaust manifold, an engine room, or a person in the water against the much colder sea surface. Visible-light cameras need photons to work with, which is why they collapse in fog, rain at night, and unlit waterways. A thermal feed does not care whether the moon is up. It cares about temperature contrast, and on the open ocean that contrast is usually strong because seawater is a stable cold backdrop.
The cleanest way to think about it is layered detection. Radar finds objects at range, AIS identifies cooperative traffic, the ECDIS chart frames the geography, and visible-light cameras handle daytime situational checks. Thermal fills the visibility hole at night, in haze, and in the kind of light drizzle that defeats consumer optics. Treating thermal as a replacement for any of those layers is the wrong frame; it is an additional sensor that closes a real gap on the bridge cameras as part of a broader bridge camera setup that wraps radar, ECDIS and visual feeds together.
What Does a Thermal Camera Actually See at Sea?
Marine thermal cameras almost all use long-wave infrared detectors, usually in the 8 to 14 micrometer band. That band is the workhorse for outdoor imaging because warm objects in everyday temperature ranges emit most of their heat there, and the atmosphere is reasonably transparent to it. Mid-wave infrared exists on a handful of high-end military and naval platforms, but for commercial, sportfish, yacht, and coast guard work the answer is long-wave.
What matters more than the band, in practical terms, is detector resolution and thermal sensitivity. Detector resolution is the pixel count of the imager itself, not the screen it displays on. Entry-level marine units are often 320 by 240 or 320 by 256. Mid-range commercial cameras step up to 640 by 480 or 640 by 512. Long-range surveillance and naval-grade units go to 1024 by 768 or 1280 by 1024. The numbers matter because they set the maximum range at which the camera can resolve a small target with enough pixels to be identifiable rather than just detectable.
Thermal sensitivity is reported as NETD, or noise-equivalent temperature difference, in millikelvin. A camera with a NETD of 50 mK can distinguish two scene elements that differ by half a tenth of a degree Celsius. Lower NETD means cleaner low-contrast scenes. For maritime work where you may be looking at a person treading water against a sea surface that is only a few degrees cooler, NETD does real operational work. Anything under 50 mK is competitive; under 30 mK is excellent.
Where Thermal Outperforms Visible-Light Cameras
Thermal sees a swimmer or person in the water at ranges where a visible camera shows only black ocean. It sees through smoke, light fog, and most rain. It picks up engine and exhaust heat from a small skiff that has no navigation lights. It picks up the warm wake behind a moving vessel, which can be useful for tracking a target you have lost line-of-sight on. And it is unaffected by glare, which is why pilot houses with bright instrument lighting see no degradation in the thermal feed at night.
Where Thermal Will Disappoint You
Thermal is not a magnifier. A 320-pixel detector with a wide lens will not give you license-plate detail on a passing vessel; it will give you a fuzzy warm blob. Thermal also struggles when the water and air are within a degree or two of the same temperature, which happens in some tropical waters in the early hours after sunrise. Heavy rain attenuates infrared more than people expect. And glass, including the bridge windows, will partially block infrared, which is why the camera always sits outside the bridge housing on its own mount, with AI-driven video enhancement layers that clean up low-light feeds handling whatever the daylight cameras pull through the wheelhouse glass.
Which Vessels Get the Most Out of a Thermal Camera?
Not every boat needs thermal, and pretending otherwise wastes capital. The vessels that get a clear return are the ones that operate in low visibility, work close to other traffic, or have a documented man-overboard or collision risk. Commercial shipping running coastal trades through congested approaches uses thermal to support the visual watch through the night and through fog. Pilot boats use it to confirm boarding ladder geometry against a moving hull in the dark. Tugs use it to put a barge into a dock at three in the morning when the only working light on the pier is yellow and weak.
Sportfish and large yachts use thermal for two reasons that overlap less than buyers realize. The first is night running in lobster-pot and crab-pot waters, where catching a buoy line at twenty knots ends a trip badly. Thermal will not show a polypropylene buoy line directly, but it will show the buoy itself in cooler water and the small floats on the surface. The second is man-overboard recovery, which is the scenario every captain hopes never to use the camera for.
Naval and coast guard interdiction work is where thermal moves from useful to mandatory. Locating non-cooperative small craft, detecting refugees on rafts, supporting boarding teams, and watching for swimmers around a moored vessel all need thermal coverage. The same logic applies to unmanned and autonomous maritime systems, where the camera becomes the watchstander rather than an aid to one. If there is no human on the bridge, the thermal feed and its computer vision pipeline are the bridge.
Where Thermal Is Often Overkill
Inland day-charter boats that never run at night, small inshore lobster boats that operate in known waters with the same routes every trip, and recreational center-consoles that go out for an afternoon tournament rarely need thermal. The dollars are better spent on a better visible camera, a second MFD, or a proper AIS transceiver. A thermal camera on a 22-foot day boat is mostly a status symbol, and a status symbol that needs an annual service interval is an expensive one.
How Do You Spec a Thermal Camera for the Bridge?
The right starting point is the vessel mission, not the brochure. Decide what range you actually need to identify a person in the water from, then size the detector and lens to that. A 320 by 240 detector with a 19-degree lens can identify a person at roughly 250 to 400 meters in cooperative conditions. A 640 by 512 detector with the same lens roughly doubles that. A long-range surveillance camera with a 60 mm or 100 mm lens will resolve a person at over a kilometer, but the field of view shrinks and you need a stabilized pan and tilt mechanism to use it meaningfully.
Stabilization is the next call. A fixed thermal camera bolted to a hardtop is fine for a tug, a pilot boat, or a workboat where the deck motion is bounded. On any vessel that pitches and rolls hard, an unstabilized image becomes unusable because the picture sweeps so fast that the operator cannot fix on a target. Gyro-stabilized pan-tilt heads add cost and a maintenance budget, but they convert a useful sensor into an actually-usable one. For coast guard and naval craft running interdictions, stabilization is not optional.
Marinization matters as much as the optics. The camera lives outside the bridge in salt fog, UV, and direct spray. Look for a sealed housing with a corrosion-resistant alloy or stainless body, IP66 or IP67 ingress protection, and a heated or hydrophobic-coated window to keep the line of sight clear. Salt-fog testing to ASTM B117 or the equivalent IEC schedule is a meaningful spec line on the cut sheet; vague language about marine use is not.
Integration is where projects go off the rails. The thermal feed has to land somewhere the watch officer is already looking. That usually means a dedicated camera display at the helm, a video input on the multifunction display, or an IP feed into the bridge video switcher. Verify which video formats your downstream gear accepts: analog composite is still common on older sportfish helms, while commercial and naval installs increasingly want IP video with a stable codec. A camera that can output both gives the installer room to make integration choices, which is one reason buyers favor units from a marine-grade CCTV ecosystem over a re-housed industrial camera.
Power, Mounting and Cabling Realities
Most marine thermal cameras pull between 8 and 35 watts at 12 to 24 volts DC. That is a small load on its own, but the camera shares the helm DC bus with displays, processors, radar, and lighting, and brownouts at engine start can crash an under-protected unit. Wire the camera through a circuit on the same bus as the navigation electronics, not on a general accessory bus, and protect it with the same surge-suppression strategy used for the rest of the bridge stack. Mount the camera high enough to clear bow spray, low enough that the radar antenna does not paint it directly, and angled so the lens is not staring straight into engine exhaust on a center stack.
What About Type Approval?
Commercial vessels that need IEC 60945 or equivalent type-approved bridge equipment should confirm whether the thermal camera itself or only its display needs to carry the certification. In most flag-state interpretations, the camera is a sensor aid rather than a primary navigation instrument, so the certification burden falls on the displays and the integrated bridge processor. That said, naval and coast guard buyers should check MIL-STD-810 and MIL-STD-461 expectations against the spec sheet before purchase orders go out.
When Should Thermal Become Part of Your Next Bridge Upgrade?
The cleanest trigger for adding thermal is the next significant electronics refresh on the vessel. Cutting open a hardtop, running new cable, and reterminating bridge harnesses is expensive, so most buyers wait until the wheelhouse is already torn down for an MFD replacement, an ECDIS upgrade, or a full helm rebuild. Adding thermal at that point keeps install labor low, lets the installer pull the new cabling alongside other runs, and lets the camera be designed into the bridge video pipeline rather than bolted onto a finished one. The companion decision is which video display the feed will live on and whether the boat needs a stand-alone screen or another input on an existing one inside a modern integrated bridge stack.
Seatronx supports thermal sensor selection, marine-grade displays for the thermal feed, and integration into commercial and naval bridge installs. Reach out with the vessel class, the operational use case, and the existing helm electronics, and the team will scope a unit that matches the mission and the budget instead of selling a brochure.
Frequently Asked Questions
Does a thermal camera replace radar on the bridge?
No. Radar looks much farther, sees through heavy weather better, and tracks targets digitally. Thermal sees what is there in the dark and in light fog at closer ranges, especially small unlit targets and people in the water. They are complementary sensors, not substitutes. A bridge that relies only on thermal will miss long-range traffic, and a bridge that relies only on radar will miss the small unpowered objects radar does not paint.
What detector resolution should I spec for a 60-foot sportfish?
A 640 by 512 detector with a moderate field of view, around 24 degrees, is a balanced choice for sportfish work because it gives enough resolution to spot pot buoys and other small surface targets at running speed without forcing the operator to manage a long-range pan-and-tilt unit. A 320 detector is acceptable on a tighter budget. A 1024 detector is rarely useful below 80 feet of length overall.
Will a thermal camera see through fog and rain?
Yes for light fog and yes for moderate rain, although the effective range drops in both. Heavy rain and dense fog attenuate infrared significantly, and a thermal feed in a tropical downpour will look much shorter than its clear-air datasheet number. Operators should treat the manufacturer range figures as fair-weather ceilings, not all-conditions guarantees.
Can a thermal camera feed an existing multifunction display?
Many can. Most modern marine MFDs accept a composite video or IP video input that a thermal camera can drive. The integration depends on the camera output format and the MFD video input options. On older sportfish helms, expect analog composite. On newer commercial and naval bridges, expect IP video over Ethernet with a recognized codec. Verify the format match before purchase.
How much maintenance does a thermal camera need?
Less than the bridge electronics around it, in most cases. The detector itself has no moving parts on uncooled long-wave cameras, which are the dominant marine type. Pan-tilt heads have bearings and motors that need annual inspection. The optical window needs cleaning whenever salt rime builds, and the camera body should be checked for corrosion at the same interval as the rest of the topside hardware.
Is a fixed camera enough, or do I need pan and tilt?
A fixed forward-looking camera is enough for many sportfish and commercial workboats that primarily need to see what is directly ahead at night. Pan-tilt-zoom mounts are worth the cost on patrol boats, pilot boats, larger yachts where the captain wants situational awareness around the entire vessel, and any platform that runs interdictions or search-and-rescue. The decision usually maps to mission, not vessel size.
Does a thermal camera need its own display?
It does not, but a dedicated screen is often the cleanest install. Sharing a screen with chartplotter or radar means the watch officer has to switch views to check the thermal feed, which defeats the purpose during a busy approach. A separate marine-grade monitor at the helm keeps the thermal picture live and visible without competing for chart real estate, which is why most well-designed bridges run a dedicated camera display alongside the primary navigation screens.
