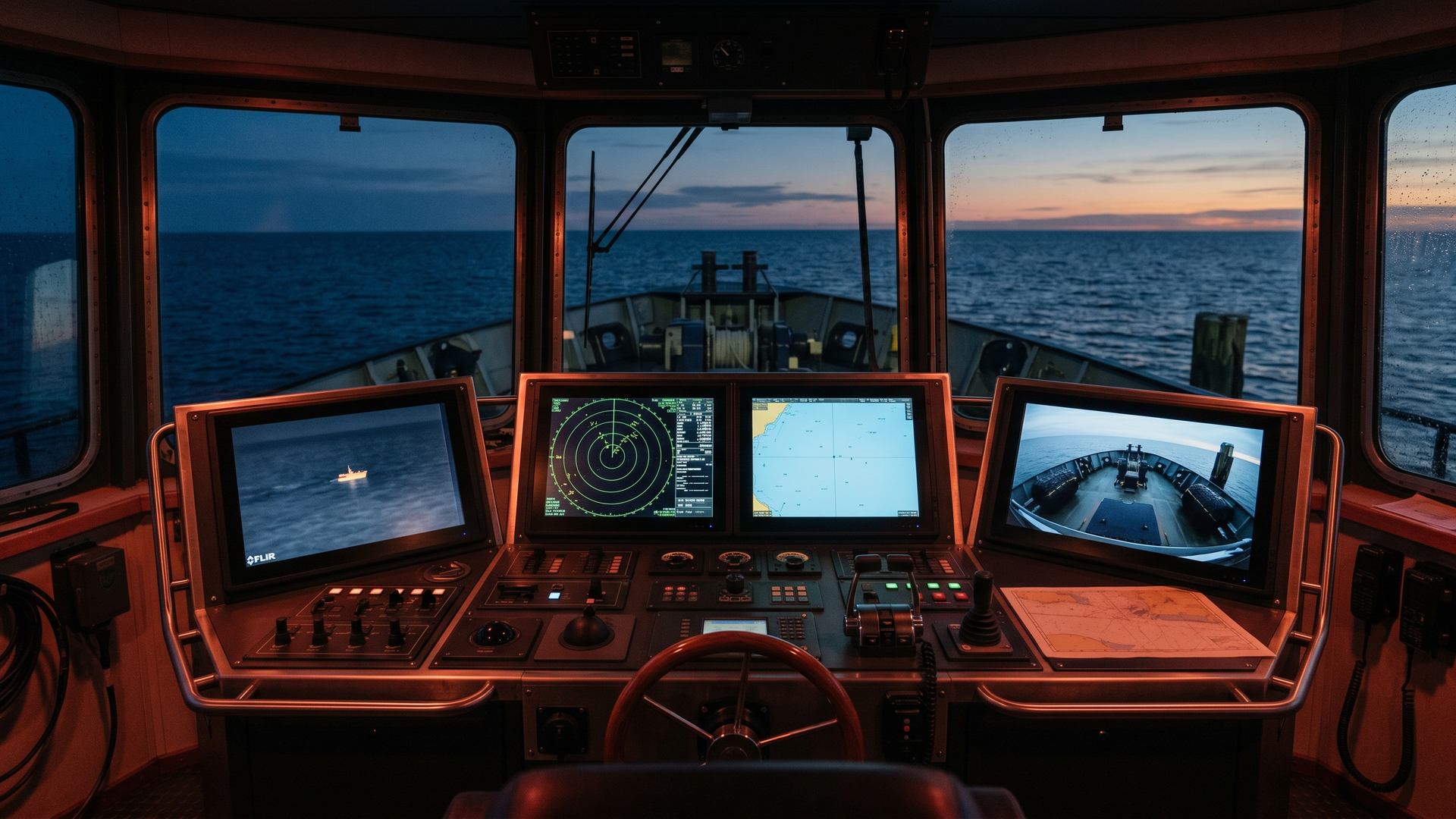

A radar return tells you something is out there. The ECDIS chart tells you where you are. Neither tells you what is actually happening on your own deck, at the bow at night, or near the waterline as you ease into a slip. That visual gap is what bridge cameras exist to close. The crew already trusts the bridge to fuse multiple signals onto a small set of screens, and modern installations bring camera feeds into the same workflow rather than leaving them as a parallel CCTV system bolted to a back wall.
When operators talk about situational awareness on the bridge, they are describing exactly this layered picture: position, presence, motion, and visual confirmation in one place. A solid bridge camera setup adds the visual confirmation layer in conditions that quietly defeat the human eye, including fog, low light, glare, distance, and weather that closes the bow off from the wheelhouse. Done well, it does not feel like an upgrade. It feels like the bridge finally has the eyes it was supposed to have all along.
This piece walks through why bridge cameras earn their spot beside radar and ECDIS, what types of cameras tend to show up on a modern vessel, how they integrate with the rest of the bridge, and what to look for when speccing them so the install actually pays off.
Why Add Cameras to a Bridge That Already Has Radar and ECDIS?
Radar and ECDIS are exceptional at answering different questions. Radar says there is a target at this bearing and range. ECDIS says you are here, the chart says this, the planned track is that. Neither system answers the questions a watchkeeper actually asks during a tense maneuver: is that small contact a kayak or a piece of debris, did the bow thruster line clear the bollard, is there foam at the propeller wash that suggests we are taking weather over the stern.
Those are visual questions. They are also the questions a single person on the wheelhouse cannot answer just by leaning over to look, especially on larger vessels where the bow may be 100 meters away from the conning station and the stern is invisible behind the superstructure.
Cameras close that gap. The reason they belong on the bridge rather than in a separate CCTV closet is workflow. A watchkeeper should not have to swivel away from the primary nav stack to verify what their eyes already think they saw. The camera feed has to be one head turn away, ideally on the same display family that already holds radar and chart, integrated through the same routing layer. This is the same logic that drives a modern integrated bridge system, which keeps decision inputs close together so the operator does not have to context-switch under pressure.
What Kinds of Cameras Belong on a Modern Bridge?
Bridge camera fits fall into a handful of practical buckets. Each one solves a different visibility problem, and a real install almost always mixes them.
Thermal Cameras for Long-Range Detection
Thermal imaging picks up heat signatures rather than reflected light. A drifting small craft with a person aboard reads as a clear contact against cool open water at night or in fog, well before that target would be picked up by the human eye or even a small-target radar. Naval, coast guard, and commercial operators rely on thermal for anti-collision and search use, and the cost has dropped enough that yacht and sportfish builders increasingly add a stabilized thermal head to the masthead for night running.
Low-Light and Day/Night Cameras
True low-light cameras switch to a more sensitive sensor mode at dusk, often with an infrared cut filter that flips out as ambient light drops, so the same lens works across full daylight to near total darkness. These are the workhorses for channel watch, dockside approach, and engine-room visibility on long voyages.
Docking and Maneuvering Cameras
These are fixed, wide-angle units mounted at the bow, stern, beam, or thruster tunnels. They are not surveillance cameras. They are precision cameras meant to give the operator a tight look at lines, fenders, bollards, and pilings during low-speed maneuvering. Latency matters here in a way it does not for a long-range thermal, because the operator is reacting in real time to what the camera shows.
PTZ Cameras for Operator-Directed Scan
Pan-tilt-zoom cameras let the watchkeeper aim a camera the way they would aim a pair of binoculars. They are particularly useful during anchor watch, when the operator wants to track a specific contact, weather front, or dive operation without leaving the bridge. A good install of commercial marine camera systems usually combines a PTZ over the master with several fixed docking cameras around the hull.
Engineering and Deck Cameras Routed to the Bridge
Modern vessels often pipe engine room cameras, deck cargo cameras, RIB launch cameras, and even galley and passageway cameras into the same wheelhouse video matrix. They do not need to live on a watchkeeping screen full time, but the watch should be able to call any of them up in seconds when something on a sensor reading or an alarm panel says they should.
How Do Bridge Cameras Tie Into the Rest of the Bridge?
This is the difference between a useful install and a wasted spend. A camera that is not integrated with the rest of the bridge stack ends up ignored.
The first piece is the display itself. A bridge camera feed should land on a display rated for the same environment as the radar and ECDIS heads beside it: vibration, salt fog, sunlight readability, and dimming for night ops. Off-the-shelf consumer monitors fail fast in harsh marine conditions, and a camera feed on a failed monitor is worse than no camera at all because the crew will have trained itself to glance at a screen that is now blank.
The second piece is the routing layer. A modern bridge often uses a digital video matrix or a networked video stack that lets the watchkeeper assign any camera feed to any display window. Some feeds run as IP streams over the ship LAN, while others run on dedicated coax with extender baluns where latency or shielding demands a hardware path. The choice depends on the camera protocol, the cable run length, and how strict the latency requirement is for that specific camera. Docking cameras need the tightest latency. Engine-room cameras can usually tolerate a network hop.
The third piece is power and signal cabling. Most modern cameras use PoE or PoE+ so a single cable handles both data and power. That works well for runs inside the superstructure. Longer runs to a masthead or a transom often need separate power, a network switch closer to the camera, or fiber for the data leg. Speccing the cabling at the camera stage prevents the install from becoming a series of patch jobs later, which is where a lot of bridge camera projects quietly lose their reliability.
What Should You Look For When Speccing a Marine Bridge Camera?
The decision-making criteria for a bridge camera differ from generic CCTV in five concrete ways.
Environmental Rating
Anything mounted outside the superstructure needs at least IP66, and ideally IP67 or higher, plus salt-fog testing if it sits in spray. Aluminum housings should be anodized or properly coated to resist galvanic corrosion. Cameras destined for engine rooms need a higher operating temperature spec than catalog defaults, and cameras for ice-class vessels need a verified low-temperature rating as well.
Optical Performance Numbers That Matter
For thermal cameras, the noise-equivalent temperature difference (NETD), measured in millikelvin, tells you how subtle a temperature contrast the sensor can resolve. Lower is better. For low-light cameras, the minimum scene lux at which the camera still resolves usable detail tells you whether the camera will earn its place after sunset. For PTZ daylight cameras, optical zoom range, image stabilization, and slew rate determine whether the operator can actually track a moving target.
Network and Protocol Compatibility
ONVIF compliance matters because most video matrix routers and bridge software expect a standard. If the camera is locked into a proprietary client app, it does not integrate cleanly into a mixed bridge, and the crew ends up running an extra laptop just to view it. Open protocols also mean the camera can be replaced without re-architecting the entire video stack.
Mounting and Vibration Tolerance
A camera mounted to a mast or upper deck experiences continuous vibration that destroys consumer-grade gimbals in months. Marine and military spec cameras are designed and tested for the vibration profile of a moving vessel, including the resonant ranges that come from engine RPM, shaft alignment, and weather. Ask for the vibration test profile, not just the IP rating.
How Easily the Camera Routes Into Existing Displays
This is the question that gets skipped most often. Before approving a camera, the install team should know which rugged marine display panels on the bridge are going to receive the feed, what the routing path looks like, and whether the watchkeeper can switch to it in one click. A camera you have to walk to a separate kiosk to view does not improve situational awareness. It just adds another piece of hardware that nobody uses.
Sportfish and yacht builds often have a different sweet spot than commercial vessels. A video monitoring system for sportfish and yacht builds usually emphasizes deck visibility, cockpit angle, and engine-room peace-of-mind cameras feeding the helm display. Commercial fleets weight thermal and long-range security more heavily, because they are running 24-hour ops in mixed traffic.
Frequently Asked Questions
What is the difference between a thermal camera and a low-light camera on a bridge?
A thermal camera detects heat radiated by objects, so it works equally well in total darkness and through fog or smoke, as long as the target has a meaningful temperature contrast with its background. A low-light camera still needs reflected light, but uses a more sensitive sensor and often a switchable IR cut filter to extend usable range after sunset. Thermal is for detection at distance. Low-light is for identification once you are closer.
Are bridge cameras required by IMO or class society rules?
Cameras themselves are not universally mandated, but adjacent rules push toward them. SOLAS, MARPOL, and class society guidance require certain visual coverage of cargo areas, machinery spaces, and security-sensitive zones, and operators meet those requirements with permanently mounted camera systems. Owners and operators should confirm with their flag state and class society which specific coverage their hull form and trade route requires.
Can a marine radar detect everything that a bridge camera can show?
No. Radar shows objects with enough radar cross-section to return a signal at range. Small wooden craft, swimmers, partially submerged debris, and many wildlife targets are effectively invisible to a typical marine radar. A bridge camera, especially a thermal one, is what closes that detection gap for soft targets and for anything the radar is set to filter out.
How many cameras does a typical commercial vessel bridge install?
For a working commercial vessel, a common spread is one thermal at the masthead, a PTZ daylight camera, two to four docking cameras around the hull, an engine-room camera, and one or two deck or cargo cameras. Larger ships and offshore platforms can run 20 or more cameras routed into the same matrix. The driver is hull form and operating profile, not vessel length on its own.
Do bridge cameras need a dedicated monitor or can they share screens with ECDIS?
Modern installs share. A digital video matrix or networked video stack lets the watchkeeper assign any feed to any display, including the same screens that show radar and chart. Dedicating one screen permanently to a camera is acceptable for a specific high-value angle like a docking view during pilotage, but it should not be the default for every camera.
What environmental rating should a marine bridge camera carry?
The minimum for outdoor-mounted cameras is IP66, with IP67 or higher preferred for direct spray or submerged exposure. The casing should be salt-fog tested per a standard like MIL-STD-810 or IEC 60068, and the operating temperature range should match the worst case on the route, not the temperate average. Indoor-only cameras can run lower IP ratings, but should still tolerate the humidity profile of a working ship.
How much does camera latency affect docking maneuvers?
For docking cameras, anything above roughly 150 milliseconds of total glass-to-glass latency starts to feel laggy and the operator stops trusting the feed. IP cameras add latency through encoding, network transport, and decoding. For docking specifically, low-latency analog or low-latency IP modes with hardware decoders are worth the extra spec line. For long-range thermal scanning, latency is much less critical, because the operator is reading a slowly changing scene rather than reacting in tight close quarters.
Where Bridge Cameras Belong on Your Next Project
A useful way to think about a camera install is to spec it together with the displays and routing rather than as an accessory bolted on after the bridge is finished. The cameras, the matrix, and the displays form a single visual layer of the bridge. If any one of those pieces is generic-grade, the whole layer underperforms in the moments that matter most. Seatronx works with builders, refit yards, and fleet engineers to spec that visual layer end to end. If your next project is in planning, the time to scope camera coverage is the same conversation where you scope the displays and the routing, not after the wheelhouse is closed up.
