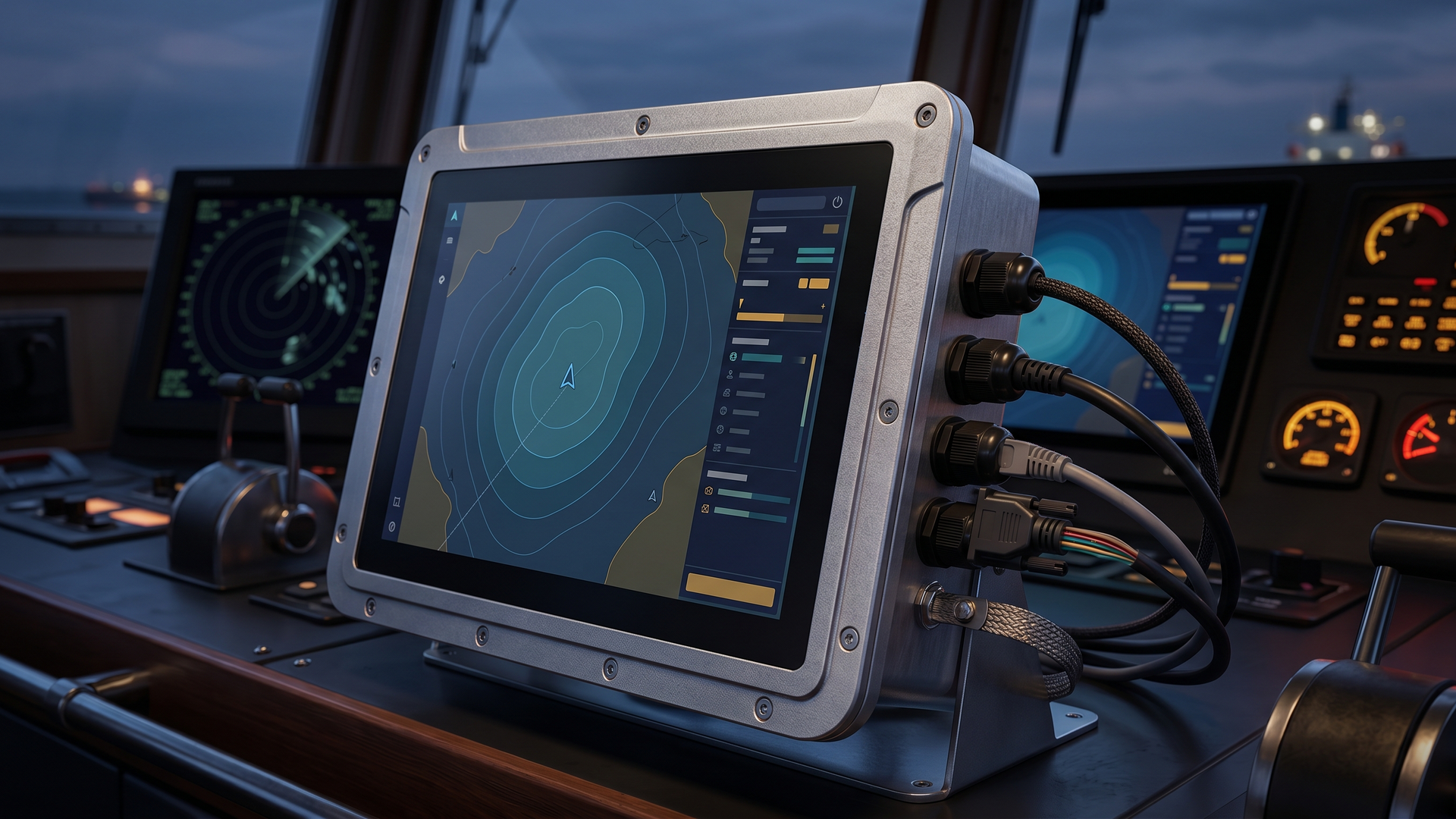

A marine panel PC sitting at the helm looks like a single product line item, but the operating system inside it is the real lifecycle decision. The chassis, sealed displays, and DC inputs are engineered for a service life of ten years or more on a typical commercial vessel. The software stack is not. Windows reaches end of support, kernels rotate through long-term release cycles, touch drivers get rewritten, and class-society type approvals lapse against superseded operating systems.

Buyers spec’ing a bridge or engine-room panel PC right now are facing a real branch point. Windows IoT Enterprise LTSC and embedded Linux are both viable on the same hardware, but they create different audit trails, different update cadences, and different type-approval scopes. Choosing without understanding the lifecycle implications usually means a forced rebuild four to six years later. This article walks through the actual decision criteria a commercial maritime or military procurement team should apply when speccing the OS layer.

Why Does Operating System Choice Outlive Panel PC Hardware?

Marine and military panel PCs are built to survive vibration, salt fog, wide temperature ranges, and wide DC input swings for a decade or more. The hardware lifecycle assumption is straightforward: order spare units, hold them on the shelf, and refresh on a seven to ten year replacement cadence. The software lifecycle is shorter than that almost everywhere.

Windows 10 IoT Enterprise LTSC 2021 reaches end of mainstream support in January 2027 and end of extended support in January 2032. LTSC 2024, the Windows 11 IoT variant, carries through to roughly 2034. A vessel built today on the wrong LTSC build can outlive its OS support window. Linux distributions handle this differently. Ubuntu LTS gets five years of standard support and up to twelve with Ubuntu Pro, Debian gets roughly five years of LTS, and a Yocto-based build is locked to whatever Board Support Package version you compiled against until you cut a new image.

The hardware decision and the software decision should be linked from the start. The panel-PC topology decision frames the chassis question; the OS choice determines whether that chassis can still receive security patches and class-society type-approval renewals in year eight. Buyers who order the chassis without writing the OS policy at the same time usually discover the constraint later, during the first patch cycle or the first class-society audit.

Touch driver continuity is another quiet lifecycle issue. Projected-capacitive multi-touch controllers from the major vendors get refreshed firmware and driver support on rolling cycles. A driver that worked on Windows 10 IoT LTSC 2019 may not exist for LTSC 2024 without a hardware revision on the panel PC itself. The same gap exists on Linux when a touch controller vendor only ships an out-of-tree kernel module that stops compiling after a few kernel jumps. A panel PC vendor that pins both the OS image and the touch driver to a verified pair is doing the buyer’s lifecycle work for them.

What Does Each OS Family Bring to a Marine Bridge?

Three OS families show up in serious marine panel PC bids. Each one fits a different procurement profile, and the right answer for a sportfishing helm is almost never the right answer for a SOLAS-regulated commercial bridge.

Windows IoT Enterprise LTSC is the closest thing to a commercial off-the-shelf bridge OS. It runs the same x86 driver ecosystem as desktop Windows, so navigation, fishfinder, AIS, and bridge-alarm applications written for Windows install with little or no porting. ECDIS vendors and bridge alarm vendors test against it because most type-approval submissions historically used Windows. Update behavior is deterministic, security updates only and no feature updates, which makes class society audits predictable. The trade-offs are licensing cost, restart-on-update behavior that can interrupt continuous watchkeeping, and the larger Windows-specific attack surface like SMB and RDP that has to be locked down at install.

Embedded Linux is the workhorse for vendor-engineered marine panel PCs. The most common builds are Debian or Ubuntu LTS for general-purpose installations and Yocto or Buildroot for vendor-built Board Support Packages that lock down the entire image. Linux gives full control over the boot path, the kernel version, and which subsystems load. It does not carry per-seat licensing. A panel PC built to handle the wide-range DC input that marine compute hardware actually sees on the vessel main bus can boot a stripped read-only Linux image faster and more predictably than a general-purpose Windows install. The downside is application portability, because most marine ISV software was written for Windows.

Real-time operating systems like VxWorks and QNX show up on niche bridge equipment where deterministic latency matters: autopilot heads, integrated alarm controllers, machinery control panels, and military fire-control bridge installations. They are rarely the right choice for a general panel PC at the helm, because they trade application breadth and tooling for guaranteed scheduling. RTOS appears in marine panel PCs only when the panel PC is doing closed-loop control rather than just running operator HMI.

Where Does Windows IoT Enterprise LTSC Fit a Commercial Vessel?

Windows IoT Enterprise LTSC fits the vessel that runs Windows-native ECDIS, Windows-native bridge alarm software, or Windows-native fleet telematics. That is most of the commercial market today. The LTSC variant is the only Windows SKU that should appear on a serious commercial bid. Pro and standard Enterprise pull feature updates that change UI surfaces and APIs every six months, which breaks type-approval scope and forces re-validation work that the operator company did not budget for.

The LTSC version matters as much as the family. LTSC 2021, based on Windows 10, is the safe choice for new vessels with a hardware refresh expected by 2031, because its extended support runs through January 2032. LTSC 2024, based on Windows 11, requires TPM 2.0 and Secure Boot enabled UEFI, which most modern marine panel PCs ship with anyway, and stretches the support runway closer to 2034. Procurement teams should reject Windows 11 Pro and Windows 11 Enterprise non-LTSC for vessels that need predictable update behavior across a full class period.

Security baseline configuration is non-negotiable on a networked bridge. BitLocker should be enabled with TPM-backed keys to protect the disk against a stolen unit. Secure Boot should chain from the BIOS through the bootloader to the OS image. Windows Defender Application Control or AppLocker should restrict execution to the signed bridge applications. SMBv1 should be off. Remote Desktop should be off or restricted to a management VLAN with key-only auth. These settings should be locked through a vessel management Group Policy or Intune profile, not left to the panel PC vendor default.

Licensing follows the OEM model. IoT Enterprise LTSC ships pre-activated on the panel PC and is tied to that hardware, so the activation survives image rebuilds and avoids per-seat subscription tails. Where IoT LTSC fits, it usually fits cleanly inside the broader integrated bridge architecture without custom driver work, because every adjacent bridge subsystem already expects to see Windows on the other end of the wire.

When Should You Build a Marine Panel PC on Linux?

Embedded Linux earns its place on marine panel PCs in four scenarios. None of them are about being clever with the OS. They are about matching the OS to the operational constraints the vessel actually has.

The first scenario is fleet-scale cost discipline. A 30-vessel fleet running Linux panel PCs avoids 30 Windows licenses and the management overhead that comes with them. At a 10-year vessel scale, the licensing differential compounds, and the OS becomes part of the maintenance budget rather than a recurring capex line. For owner-operators running large mixed fleets, that is real money over a class period.

The second scenario is vendor-controlled image builds. Boat builders and integrators that want to lock the OS, the application, and the touch drivers into one tested image use Yocto, Buildroot, or a custom Debian preseed. The result is a panel PC that boots only the vetted application, with no general-purpose user shell. Read-only root filesystems and overlay-based writable partitions make the image survive ungraceful power loss, a real benefit on a vessel where the DC bus can drop without warning during a generator changeover.

The third scenario is real-time-tuned control. PREEMPT_RT-patched kernels give Linux soft real-time scheduling that is good enough for autopilot HMI, machinery control panels, and dynamic positioning operator stations. Configuring real-time priorities and CPU isolation on Linux is more direct than on Windows IoT, because the kernel exposes the scheduling knobs natively and the integrator can tune them per process without working around an opaque scheduler.

The fourth scenario is defense and rugged-procurement integration. Programs that follow MIL-STD test procurement specifications often pair the hardware test plan with a Linux software stack because the source code can be audited and the build can be reproduced inside a controlled-classification environment. RHEL, Wind River Linux, and Yocto are common picks for military marine panel PCs. ECDIS type approval on Linux is harder than on Windows, because most ECDIS vendors do not certify Linux builds, so commercial bridge installs requiring SOLAS V/19 ECDIS will usually default back to Windows, while combatant, patrol-craft, and unmanned-surface-vehicle applications can stay on Linux without that constraint.

How Do You Manage OS Lifecycle Across a Decade of Service?

Whichever OS the vessel runs, the operational question is how patches, drivers, and class-society approvals stay current after the vessel leaves the yard. Three pieces matter, and all three should be written into the panel PC purchase order before the chassis is ordered.

Patch cadence and delivery is the first. Bridge panel PCs are rarely on a fast, open internet connection. The realistic options are offline patching via class-society-approved USB media or a vessel-side WSUS server or Linux apt-mirror that pulls updates while the vessel is in port. Either way, a written patch policy with monthly windows during open-ocean transits and immediate windows for emergency security patches is the operator company responsibility, not the panel PC vendor’s. The patch policy should also name a documented rollback path for each panel PC, because a bad patch on a watchkeeping device is a navigational risk.

Driver signing is the second. Touch controller drivers, GPU drivers, and serial-over-USB drivers all need to be signed by an authority the OS trusts. On Windows IoT LTSC, Microsoft-signed WHQL drivers are the baseline, and any unsigned driver should fail to load under Secure Boot. On Linux, kernel modules need to match the running kernel and should come from the distro signed package repository where possible. Out-of-tree binary drivers create a real lifecycle hazard because they break on kernel updates and force a forked build that nobody upstream supports.

Type-approval scope is the third. Many class societies, including ABS, DNV, Lloyd’s Register, and BV, approve a bridge system as a complete configuration. The panel PC, OS version, ECDIS build, and bridge alarm firmware are listed together on the certificate. Patching the OS outside the approved scope can void that approval, so any production patch should be validated against the type-approval certificate before it rolls to the vessel. For commercial bridges, the realistic operating pattern is to keep the OS on the approved version, apply security-only patches, and refresh the entire approved configuration every five to seven years. The same panel PC hardware can usually carry through two refresh cycles before chassis replacement is justified, and a standard marine panel PC lineup is built around exactly this assumption: long parts availability, BIOS revision pinning, and OEM activation that survives image rebuilds.

Where Should Marine Panel PC OS Selection Start?

The cleanest way to lock the OS decision before the chassis is ordered is to walk three checkpoints in order, and to document each answer before the purchase order is signed.

Start with the application stack. List the ECDIS, bridge alarm, AIS, voyage planning, telematics, and fleet management software that will run on the panel PC. Note which of those vendors ship Linux builds and which are Windows-only. If more than one critical application is Windows-only, the OS decision is effectively made. Go with Windows IoT Enterprise LTSC and pick a panel PC whose vendor will pre-activate the OEM image. If every critical application is available on Linux, the next checkpoint becomes the deciding factor rather than the first.

Next is the class-society and flag-state scope. Confirm with the assigned class society what OS configurations they will currently certify in the hull’s type-approval scope, and which versions they expect to support across the next renewal cycle. A class society with open Windows IoT LTSC 2024 type-approval scope but no current Linux scope will steer the answer toward Windows for SOLAS-mandated functions, even if Linux would otherwise be preferred for the rest of the vessel.

Finally, the operational tail. Decide who patches the panel PCs, when, and how. Map the patch path against the vessel internet posture, the vessel cybersecurity policy, and the master-data record kept by the operator company. If the operator company does not have a fleet patch program today, the OS decision should default to the option with the longest unattended support window, currently Windows IoT Enterprise LTSC 2024, until that capability is built. Get those three checkpoints documented before placing the panel PC order, and the OS layer will survive the vessel through the next class-society period.

Frequently Asked Questions

What operating system does a marine panel PC usually run?

The most common choice on commercial bridges today is Windows 10 or Windows 11 IoT Enterprise LTSC, because most ECDIS, bridge alarm, and fleet-management software is written for Windows. Embedded Linux is common on vendor-built panel PCs where the entire image is locked down by the builder. RTOS such as VxWorks or QNX shows up only on niche control panels where deterministic latency is a hard requirement.

Can a marine panel PC run plain desktop Windows 11?

It can technically boot, but it should not be specified that way for any vessel that will see a class-society inspection. Standard Windows 11 Pro and Enterprise receive feature updates every six months that can change driver behavior, UI surfaces, and security baselines. Those changes routinely fall outside an approved type-approval configuration and force re-validation. Windows IoT Enterprise LTSC is the only Windows SKU built for fixed-function devices like marine panel PCs.

Is Linux acceptable for an ECDIS panel PC under SOLAS?

Only when the ECDIS application is itself type-approved on a specific Linux build and the entire installation is certified by the class society against that build. Most major ECDIS vendors currently ship Windows-only certified builds, so Linux ECDIS panel PCs on SOLAS-regulated vessels are rare. Linux is more common for ancillary bridge functions such as voyage planning, AIS data display, and fleet telematics, which do not require SOLAS V/19 ECDIS certification.

How long does Windows IoT Enterprise LTSC actually get updates?

LTSC 2021 receives security updates through January 2032 under extended support. LTSC 2024 stretches through approximately 2034. Mainstream support windows are shorter, about five years, but the extended-support tail is the realistic planning horizon for a commercial vessel. Operators selecting today should generally specify LTSC 2024 to maximize the unattended-update runway against the vessel hull life.

Do touch drivers behave better on Windows or Linux?

Windows has broader out-of-the-box driver coverage for projected-capacitive multi-touch controllers from the major vendors. Linux has improved significantly since kernel 5.10, and most projected-capacitive touch controllers now have in-tree drivers that survive kernel updates without vendor intervention. For new builds today, both are workable. The deciding factor is usually which controller chip the panel PC vendor uses and whether they ship a current driver matched to that controller for the chosen OS.

Can a marine panel PC be locked down to a single application?

Yes, and on a bridge it should be. Windows IoT Enterprise LTSC supports assigned-access kiosk mode, Shell Launcher, and Custom Logon for single-application lockdown. Linux supports the same pattern through a stripped X or Wayland session that launches only the bridge application as a full-screen managed process. Locking the panel PC down to a single bridge application improves boot time, reduces attack surface, and makes class-society audit easier at every survey.
