On a working bridge, every wasted inch of console space and every extra cable matters. When a captain or systems integrator sits down to spec the next round of bridge electronics, the question almost always lands on the same fork in the road: should the chart system, engine monitoring, and CCTV feeds run on an all-in-one panel computer, or should the display and the computer stay as two separate pieces of hardware? It looks like a small line on a bill of materials, but it changes how the boat is built, how it gets serviced, and how it holds up after years of salt air and vibration.
There is no universal right answer. A 22 meter sportfishing yacht in the Gulf, a 200 meter container ship transiting the Mediterranean, and a Coast Guard patrol vessel running winter rotations off Alaska all face different physical, regulatory, and operational constraints. What we can do here is walk through the real decision points so the call gets made on operational facts rather than spec-sheet pricing alone.
What Is a Marine Panel PC, and How Does It Differ From a Standard Bridge Setup?

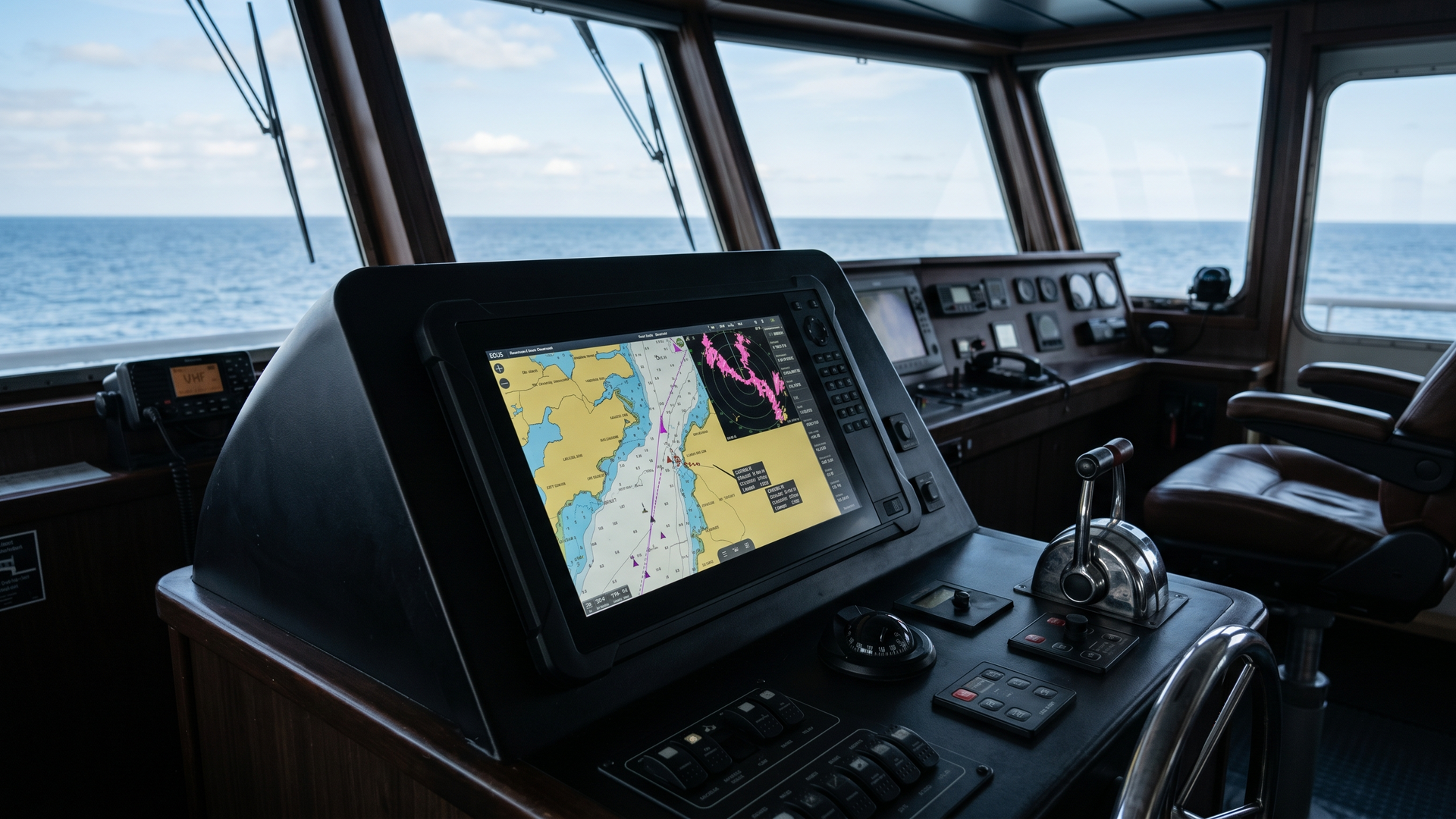

A marine panel PC is a single sealed enclosure that combines a marine-grade display and an industrial computer behind one bezel. One mount, one power input, one network or video cable run, one IP rating, one warranty. The user touches the screen and the computer behind it responds without any external HDMI, DisplayPort, USB, or power chain in between. By contrast, a conventional bridge install pairs a standalone marine monitor with a separate marine PC mounted in a console cabinet or rack, connected by video, USB, and power cabling that has to survive the same vibration and salt exposure as everything else on board.
The internal hardware in a serious panel PC is engineered for the same conditions a separate marine display has to handle. Optical bonding to remove condensation and parallax. Sunlight-readable backlights in the 1,000 to 1,500 nit range, often with auto-dimming for night operations. Fanless industrial motherboards rated for wide-temperature operation. IEC 60945 environmental and EMC compliance for SOLAS bridges. MIL-STD-810 or MIL-S-901D shock and vibration ratings for naval and Coast Guard programs. The whole marine panel PC product family sits at this intersection of display engineering and industrial PC engineering, which is why specifying one looks more like specifying a piece of bridge equipment than a piece of office IT.
How is a panel PC different from a marine touchscreen monitor?
A marine touchscreen monitor is a display only and still needs a host computer to run any software, whether that is the chart plotter, the ECDIS application, the engine SCADA, or the camera management system. A panel PC has the host computer built into the same sealed bezel, so a single unit handles both jobs. From the operator’s seat the two can look identical. From a serviceability and bill-of-materials perspective they are very different products, and treating them as interchangeable on a quote sheet is one of the more common ways a refit budget goes sideways.
When Does an All-in-One Build Outperform a Separate Display and Computer?
Several practical conditions push the decision toward an integrated unit:
- Tight console real estate. Helm pods, ATC operator stations, military vehicles, and small-vessel bridges often have less than 10 inches of cabinet depth behind the panel cutout. A panel PC fits in that space; a separate computer plus monitor usually does not.
- Fewer failure points. Every external HDMI or DisplayPort run is a connector that can corrode, vibrate loose, or pick up EM noise from VHF, radar, or thrusters. An integrated bonded build eliminates those external video and USB runs entirely.
- Single power input. One DC or AC connection, one over-voltage path, one shutdown sequence. That matters when you are designing redundant battery rails, UPS coverage, or shore-power transitions.
- Faster install and refit. One cutout, one set of fasteners, one cable bundle. Refit yards routinely save days of bridge labor when the spec calls for panel PCs over discrete display-plus-PC pairs.
- Easier sealing. Fewer enclosure penetrations means fewer gaskets to fail. For washdown decks, engine-room HMI stations, and any open-bridge install, that is a measurable reliability gain.
This is also why an industrial-grade panel PC is the default choice in commercial fishing, offshore platforms, and processing decks where space is limited and the environment is openly hostile. The same engineering carries over to maritime: the more contained and weather-exposed the install, the harder it gets to justify the cabling complexity of a separate display and computer. On a small vessel, the answer is almost always integrated. On a large ship, the answer becomes a more nuanced layout question that we walk through next.
Where Does a Separate Display and Computer Still Win?
The all-in-one form factor is not a universal upgrade. There are real installations where keeping the display and the computer as two distinct components is the better engineering call, and pretending otherwise leads to refits that age badly.
When you need independent upgrade cycles
A purpose-built marine display typically has a serviceable life of 7 to 10 years. The computer behind it is on a 3 to 5 year cycle, partly because operating system support windows and security patches do not last as long as the LCD glass. With separate components you can swap the computer twice over the display’s lifetime, which lowers total cost of ownership for fleets running on long lifecycle plans. Once the two are fused into a single panel PC, replacing the computer means replacing the display too, even if the panel itself is still healthy.
When the bridge runs multi-monitor or video-wall layouts
Modern integrated bridge systems often spread chart, radar, AIS overlay, CCTV, engine, and comms feeds across three to six screens driven by one or two beefier compute nodes. That topology is much easier with a centralized dedicated marine computer running multi-output graphics into a row of marine displays than with a stack of independent panel PCs each duplicating storage, RAM, and CPU. The same logic applies on military combat-information rooms and large naval bridges where situational awareness lives across many screens at once and the compute needs to be consolidated rather than scattered.
When thermal headroom or fan cooling is required
High-frame-rate radar processing, AI video analytics, ML-assisted target detection, and large 4K chart plotting can push a bridge computer past what a fanless panel PC can dissipate. Putting the computer in a ventilated cabinet with active cooling lets it run a higher-tier processor without thermally throttling. The display side stays passive and sealed, which is where the heat constraints actually matter most. For programs running heavy compute on the bridge, the split keeps both halves operating inside their design envelopes instead of fighting each other for the same thermal budget.
When the program demands hot-swap redundancy
Some commercial and military programs require that any single bridge component can fail and be swapped without taking the station offline. With a separate computer and display, the standby compute node can be wired to drive the same screen on failover, and a failed display can be replaced while the computer stays live. With a single sealed all-in-one, that same redundancy means keeping a full spare panel PC on the rack and accepting downtime during the swap. Class societies and naval procurement officers often write that requirement directly into the spec, and the answer becomes architectural before it becomes a product question.
How Should You Choose a Marine Panel PC for Your Vessel?
If the application falls on the all-in-one side of the line, the next decision is which class of panel PC to specify. The same six questions tend to drive that selection.
- What use cases will it run? A pure HMI for engine monitoring needs less compute than an ECDIS station overlaying chart, radar, and AIS. The use case sets the processor floor.
- What is the physical envelope? Measure the available console depth, the panel cutout, and the ambient temperature range at the install location. An engine room HMI faces 50 C ambient; a flying-bridge install faces direct sun and salt spray.
- Which certifications are mandatory? SOLAS bridges need IEC 60945 environmental and EMC compliance; ECDIS stations also need IEC 61174 type approval and IHO S-52 chart presentation. Naval programs add MIL-S-901D shock testing; hazardous areas add ATEX or IECEx.
- What ingress protection rating is realistic? IP65 is the floor for an enclosed wheelhouse. IP66 for an exposed open-bridge helm. IP67 or IP69K for washdown decks, fishing decks, and engine-room HMI stations that get rinsed regularly.
- What is the long-term parts availability? Industrial-grade boards have 5 to 10 year availability windows from the silicon vendor. Consumer-grade boards do not. For a vessel with a 25-year service life, that gap matters.
- Does it integrate with the rest of the bridge stack? Verify the I/O for ECDIS, NMEA 2000, NMEA 0183, IEC 61162, and any vendor-specific radar or autopilot interfaces before locking the spec.
A bridge spec’d around an ECDIS-class marine panel PC is a clean answer when the vessel needs SOLAS-compliant chart navigation and the program prefers the simpler cabling topology. A purpose-built display paired with a separate marine computer is the cleaner answer when redundancy, multi-monitor topology, or independent upgrade cycles dominate the requirement set. The deciding factor is almost never the unit price by itself; it is the operational reality the vessel actually has to live with.
Frequently Asked Questions
Is a marine panel PC the same as a marine touchscreen monitor?
No. A marine touchscreen monitor is a display only and needs a separate computer to run any software. A marine panel PC has the computer built into the same sealed enclosure, so a single unit handles both the display and the compute. From the operator side they can look identical, but from a serviceability and bill-of-materials perspective they are very different products.
Can a marine panel PC run ECDIS, radar, and engine monitoring at the same time?
Yes, when it is spec’d correctly. ECDIS workloads need an IEC 61174 type-approved configuration with enough CPU and RAM to handle live chart rendering plus radar overlay plus AIS targets. Engine monitoring is light by comparison. The constraint is usually thermal budget rather than raw CPU. A fanless panel PC running a low-TDP industrial processor can carry one of those workloads comfortably; running all three on one unit needs a higher-tier mid-range processor and careful thermal design.
What IP rating should a bridge panel PC have?
IP65 is the practical minimum for an enclosed wheelhouse. IP66 is the working floor for any exposed flying bridge or open helm where the unit will see direct rain, spray, or wave splash. IP67 or IP69K is appropriate for fishing decks, washdown areas, engine-room stations that get rinsed, and any install behind a watertight door that may flood. The IP rating should match the actual environment, not just the easiest checkbox.
How does a panel PC handle vibration and shock at sea?
Marine and military panel PCs use solid-state storage instead of spinning disks, conformally coated motherboards to resist condensation, and shock-mounted internal assemblies. The unit as a whole is tested against IEC 60945 environmental and EMC standards for commercial bridges, and against MIL-STD-810 or MIL-S-901D for naval and Coast Guard programs. Those tests cover sustained vibration, mechanical shock, salt fog, and wide temperature swings.
Does a panel PC use less power than a separate display and computer?
In most realistic configurations, yes. An integrated unit shares one power supply, one DC-DC stage, and one cooling envelope, so the parasitic losses of two separate enclosures go away. The savings depend on how heavily loaded the compute side is, but for typical HMI and ECDIS workloads a panel PC runs measurably lower total system draw than the equivalent separate display plus computer pair.
Is a marine panel PC harder to repair than a separate display and PC?
It is a different repair model. With a separate display and PC, you can pull and replace one half of the system without touching the other. With an all-in-one, a single component failure usually means swapping the whole unit. The trade-off is that there are far fewer cables, connectors, and seals that can fail in the first place. Fleet operators who carry a small inventory of spare panel PCs find the swap-and-go model faster on the water than diagnosing a discrete display-plus-PC stack at sea.
If you are speccing a new bridge or planning a refit and aren’t sure which path makes more sense for your vessel, our engineering team can walk through the decision with you. The right choice usually surfaces quickly once we know the cabinet space, the certifications you have to meet, and how the rest of the bridge electronics will be laid out.
