Specifying a marine bridge display is usually treated as a pixel-count and brightness exercise. The pixel count gets old in five years. The video input list on the back panel decides which signal sources can plug into that display for the next ten or fifteen years, and which ones force a full bezel pull when a new camera, chart processor, or radar overlay arrives at the helm.
The decision usually lands on a single question: does this bridge need broadcast-grade SDI on BNC connectors, or is a consumer HDMI input enough? The answer depends less on the display itself and more on what is plugged into it, how far the cable has to run, and whether a single dropped frame would matter at three in the morning in heavy seas with the watch officer trying to read a radar overlay through polarized sunglasses.
What Counts as a Video Input on a Marine Bridge Display?
A marine bridge display is essentially a hardened monitor with a defined set of signal connectors on the rear panel. Each connector defines a separate procurement decision: cable type, maximum run length, signal redundancy, locking hardware, electromagnetic immunity, and which devices on the bridge can use it as a primary or backup feed. The mix is fixed at the factory in most rugged marine displays, which is why it has to be specified correctly before the order goes in rather than added later.
The current shortlist of physical video inputs on professional marine displays breaks into five families:
- HDMI (HDMI 1.4, 2.0, 2.1). Consumer-grade single-cable digital video and audio. Common on multifunction displays, chartplotters, and small-form-factor bridge PCs. Locking-clip hardware exists but is not universal. Practical cable run is roughly five to ten meters before active equalization is needed, and far less on HDMI 2.1 at full bandwidth.
- DisplayPort (DisplayPort 1.2, 1.4). Higher bandwidth than HDMI 2.0 and the standard output on most industrial panel PCs. Native locking latch on the connector. Same passive copper cable-length limits as HDMI, but more headroom for 4K and beyond and a cleaner EDID negotiation on power-on.
- SDI (HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI). Broadcast-grade serial digital interface over a single 75-ohm coax cable with a BNC locking connector. Used wherever cable runs exceed ten meters, multiple sources feed a router, or the bridge needs deterministic delivery without an HDCP handshake. SDI is what professional video and broadcast environments standardized on, and the marine bridge inherits the same engineering reasons.
- DVI and VGA. Legacy inputs that still appear on bridges with older chart processors, rack-mounted alarm consoles, or industrial PCs that have not been refreshed. DVI is digital and dual-link DVI is still occasionally specified for high-resolution legacy panel PCs. VGA is analog and largely retained for backward compatibility with older monitoring equipment.
- Composite video (CVBS) on BNC. Analog 480i or 576i feeds from older closed-circuit cameras, engine-room cameras, or thermal imaging units. Still common on older vessels and useful whenever the bridge has to display a video stream from equipment too old to upgrade.
The optional family on top of those five is signal extension: fiber-optic HDMI and SDI extenders, keyboard-video-mouse extenders over Cat6a, and video-over-IP encoders. Those are not inputs on the display itself, but they decide how the source equipment elsewhere on the vessel actually gets a signal to the connector. A 12G-SDI input on the display is useful only if the cable run between the camera and the display fits within the budgeted optical or electrical loss. The complementary decision about which ports belong on the marine panel PC that drives the video sets the source-side ceiling for everything that lands on the back of the display.
Why Does SDI Still Dominate Professional Marine Bridges?
SDI was designed for broadcast television studios where a dropped frame in a live feed is unacceptable and where coax cable has to snake hundreds of meters through a building without a repeater. Those same constraints describe a commercial bridge, a naval combat information center, an unmanned engine-room monitoring station, and any vessel where the watch officer cannot afford a second of black screen when a radar overlay or a thermal camera should be live.
The technical case for SDI on a marine bridge display rests on four properties of the standard that HDMI was never designed to deliver:
- Cable length on a single passive run. 3G-SDI carrying 1080p60 supports roughly 100 meters of quality Belden 1694A coax without an equalizer. 12G-SDI carrying 4K60 supports roughly 70 meters on the same coax. HDMI 2.0 on passive copper is typically limited to five to ten meters before signal integrity collapses. On a 90-meter cargo ship or a 130-meter naval vessel, that difference decides whether one cable will work or whether a chain of fiber extenders has to be specified, powered, and maintained.

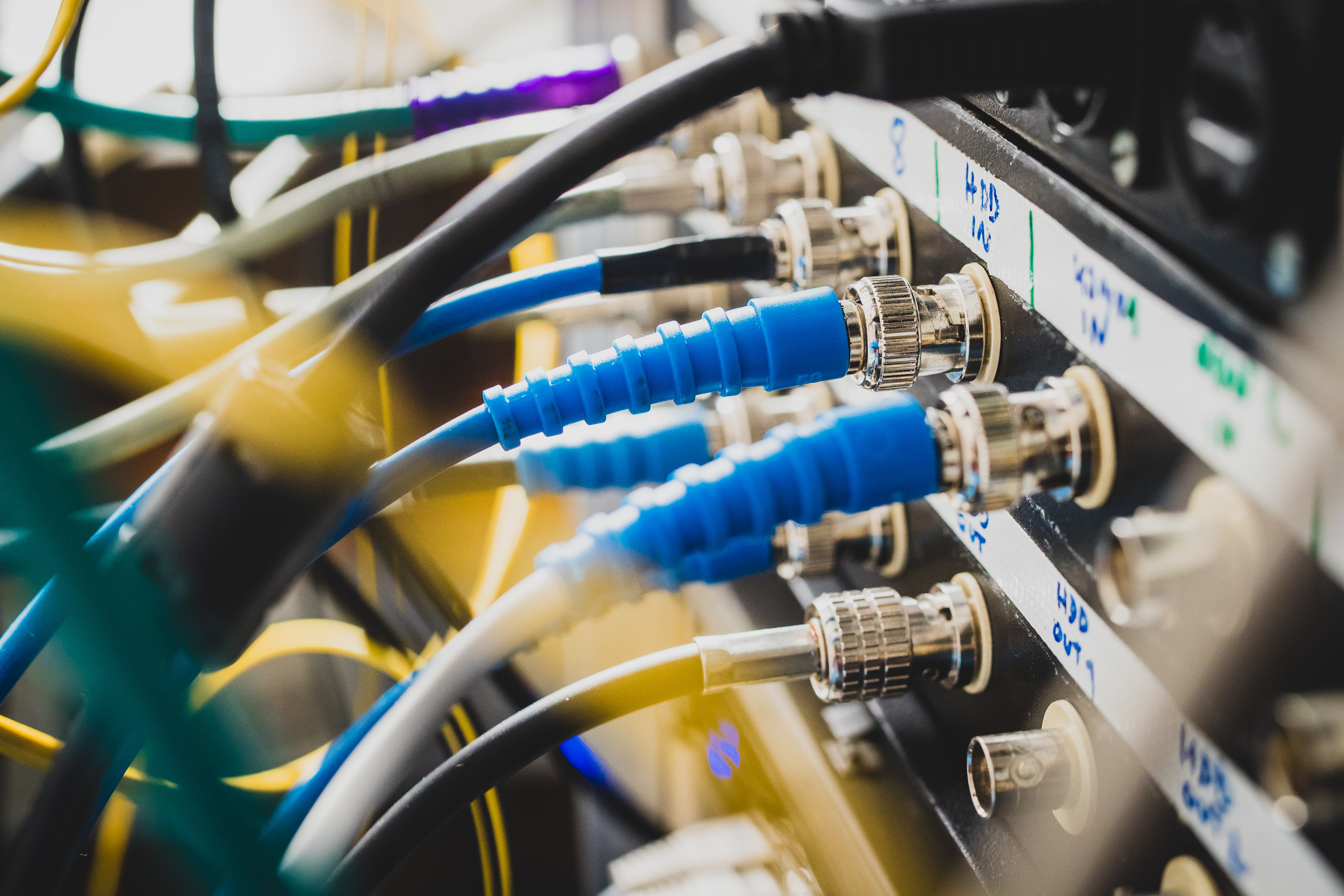

- BNC locking connectors. A BNC twists a quarter turn and stays seated through hours of pounding seas. HDMI relies on friction. Once a bridge takes a hard slam, an unsecured HDMI cable will partially unseat and the watch officer sees intermittent dropouts that look exactly like a failing display, complete with a service call and a needless RMA.
- No HDCP handshake. SDI is a deterministic broadcast standard with no copy-protection negotiation between source and display. Every time an HDMI source and an HDMI display power on at different rates, for example, the display warms up faster than the chart PC during a cold restart, the HDCP handshake can fail and produce a black screen until both ends are renegotiated. SDI never carries that failure mode and never needs an HDCP-stripper box in the cable run.
- Routing and distribution. SDI can be split, routed, and reclocked through a passive or active distribution amplifier without color shift or framerate drift. A single radar source can feed three SDI displays at three watch stations through a 1×3 distribution amp. HDMI distribution requires active splitters with EDID emulation, and any EDID mismatch downstream causes the source to renegotiate every device on the chain.
The practical consequence is that any bridge designed around centralized camera feeds, radar overlays distributed to multiple watch stations, redundant chart sources, or long cable runs between the equipment room and the helm tends to default to SDI as the backbone, with HDMI and DisplayPort as secondary inputs for newer chart processors. The same logic that makes SDI the default on a commercial bridge also drives the camera-feed and overlay redundancy choices on an unmanned bridge installation, where a single dropped feed can trigger an alarm at a shore-side operations center and force the autonomy stack to fail over to a backup display chain.
When Does HDMI Make More Sense Than SDI?
SDI is not always the right answer, and bridges that overspec it spend money on input architecture that the vessel will never use. HDMI earns its place on the input list whenever three conditions line up: short cable runs from a single primary source, a budget that cannot absorb SDI distribution gear, and a duty cycle where momentary HDCP renegotiation is annoying rather than dangerous.
The typical HDMI-primary bridge looks like a recreational sportfish, an inland coastal cruiser, a small charter operator, or a sealed-cabin helm where the chart processor sits inside the same console as the display. In that configuration, an HDMI 2.0 cable runs less than five meters, the display and source share a power bus, and the only consequence of an occasional dropout is a one-second blink while the chart processor renegotiates. The cost difference is real: a single HDMI input is included on nearly every marine display at no premium, while specifying multiple 12G-SDI inputs adds component cost, board space, and qualification testing that can move the unit price by several hundred dollars.
HDMI also wins when the primary signal source is a consumer-grade chartplotter or multifunction display that does not offer SDI on its rear panel. Most recreational and prosumer chart electronics output HDMI as their only digital video path. Spec’ing an SDI-only marine display for that environment forces a converter box in the cable run, and every converter box is one more powered device that can fail, drop firmware, or violate the IP67 rating of the otherwise-sealed console. The broader question of whether to keep the chartplotter as the primary helm screen or replace it with a purpose-built marine display behind the helm usually drives the input mix on the back panel before anyone gets to the SDI-versus-HDMI debate.
DisplayPort sits between SDI and HDMI on this spectrum. It carries higher bandwidth than HDMI 2.0, includes a locking latch as part of the connector itself, and is the standard output on nearly every industrial panel PC that drives a bridge display. For any bridge built around a Windows-class PC pushing a chart application, dual DisplayPort inputs on the display are usually a better second choice than dual HDMI inputs, even on a vessel that does not need SDI elsewhere on the bus.
How Should You Build a Video Input Plan for a New-Build Bridge Display?
A video input plan for a new-build display starts with the source inventory on the vessel and ends with a back-panel connector layout that covers every source plus one or two spares. Tier the decision by duty class, because the same display chassis can be ordered with very different input modules depending on which bridge it will sit on:
Recreational and coastal duty under 25 meters, single-station helm
One HDMI 2.0 input, one DisplayPort 1.2 input, and one DVI input cover almost every signal source on a single-station helm. The HDMI accepts a chartplotter or recreational multifunction display, the DisplayPort accepts a marine PC, and the DVI absorbs a legacy radar or sounder still in service. Skip SDI and skip composite on this tier. Cable runs stay under five meters and the cost premium for SDI buys nothing the bridge will use.
Commercial coastal and offshore duty, 25 to 150 meters, multi-station bridge
Two 3G-SDI inputs become mandatory: one for the primary chart processor and one for a backup or radar overlay. Add one HDMI 2.0 input for a secondary chart source and one DisplayPort 1.2 for service technicians who plug in a laptop during sea trials and survey calls. A single composite BNC absorbs older engine-room or stern cameras that the vessel will not be upgrading for another decade. Cable runs between the equipment room and the helm exceed ten meters and need locking BNC for vibration immunity. Expect every input on this tier to support hot-swap source selection without a power cycle.
Naval, unmanned, and mission-critical duty
12G-SDI inputs on the display itself plus fiber-optic SDI extension for any run longer than 70 meters. Add KVM extension over Cat6a so a single console can take control of any source in the rack room without a separate switch box. Spec two redundant SDI inputs fed from independent paths through separate cable trays so that a single cable cut on one side of the vessel does not blank the display. Add HDMI 2.0 only as a service input for portable test equipment. Verify that every input supports redundant input switching with no manual selector intervention by the watch officer.
One detail the input plan should specify but most do not: which inputs handle which native and scaled resolutions. A 4K input on a 1080p display has to scale every frame, which adds latency and can soften ECDIS chart text below the readability floor in S-52 day and night palettes. The cleanest design pairs the input bandwidth with the panel’s native resolution, and the decision about whether to specify a 4K panel at all sits on top of the same buyer logic covered in the dedicated resolution-tier procurement framework. EDID handling, HDCP support per input, and input prioritization for redundancy should all be written into the purchase specification and tested at acceptance, not assumed from the brochure.
Where Should Marine Display Video Input Spec Work Begin?
Begin with a written source inventory: every chart processor, radar, AIS overlay, camera, alarm console, and service laptop that will ever feed the display over the ten-year refit horizon. Map each source to a cable run length, an EMC environment, and a redundancy requirement. The result is a per-input requirements list that any marine display can be checked against before the back panel is ordered.
The Seatronx product line of marine displays with configurable video inputs is built around the SDI, HDMI, DisplayPort, DVI, and composite combinations that commercial and naval bridges actually deploy. Working through the input plan before the display order goes in is the single decision that determines whether the bridge can absorb new equipment for a decade or has to be opened up the next time a camera or radar gets added.
Frequently Asked Questions About Marine Display Video Inputs
How long a cable run does SDI actually support on a marine bridge?
3G-SDI carrying 1080p60 supports roughly 100 meters of quality 75-ohm coax such as Belden 1694A without an equalizer. 12G-SDI carrying 4K60 supports roughly 70 meters on the same coax. Both numbers drop with lower-grade cable, with bends below the minimum bend radius, or with degraded BNC connectors. For any run longer than the passive copper limit, fiber-optic SDI extension is the next step and is widely available in marine-rated assemblies.
What is the maximum HDMI cable length on a bridge installation?
Passive HDMI 2.0 copper is generally reliable up to about five meters and acceptable up to ten meters with high-quality cable. Beyond ten meters, plan on an active equalizer, an HDMI-over-Cat6a extender, or a fiber-optic HDMI extender. HDMI 2.1 carrying 8K or 4K120 collapses the passive limit to roughly three meters, and that should be assumed in any new-build spec rather than discovered during commissioning.
Does an HDCP handshake matter on a marine bridge display?
It matters whenever the bridge cannot tolerate a momentary black screen while the source and display renegotiate. HDCP renegotiation typically happens on a cold start, after a power dip, or when an EDID change is detected downstream. SDI carries no HDCP layer and never produces this failure mode, which is one of the reasons it remains the default for safety-critical feeds on commercial and naval bridges.
Can a single marine display accept SDI and HDMI on the same back panel?
Yes. Most professional marine displays ship with a configurable input module that can include SDI, HDMI, DisplayPort, DVI, and composite simultaneously. The input mix is specified at order time and cannot usually be changed in the field without returning the display to the manufacturer, which is why the source inventory and input plan have to be done before the purchase order goes in.
Do I need composite video inputs on a new-build bridge?
Specify a single composite BNC if any vessel-mounted camera, engine-room monitor, alarm console, or legacy radar still outputs only 480i or 576i analog video and is not on the refit roadmap. On a clean-sheet new build with all-new equipment, composite is usually unnecessary and the back-panel space is better used for an additional digital input or a redundant SDI port.
Which video input types fail the EMC environment on a bridge?
Unshielded HDMI cables routed near a high-power radar transmitter, generator, or thruster controller will pick up enough radiated noise to produce intermittent pixel sparkle, sync loss, or full dropout. Composite analog runs near switching power supplies show ground-loop hum bars. The EMC-safe choices on a hostile bridge are shielded BNC for SDI and composite, locking DisplayPort for short PC-to-display runs, and shielded fiber-optic extension for anything that has to cross the engine room or run along a high-current bus.
How many video inputs should a marine bridge display actually carry?
Most professional bridge displays settle on four to six rear-panel inputs: a primary digital input matched to the panel’s native resolution, a redundant digital input on a different path, one or two legacy or service inputs, and at least one spare for future equipment. A display with fewer than four inputs is usually a recreational unit; a display with more than six inputs is usually a multi-source console that should be evaluated as a video-router-plus-display pair rather than a single product.
