IEC60945 Compliant Hardware for Electronic Chart Systems (ECS)
In August 2025, the Coast Guard issued NVIC 01-16 Change 3, which outlines regulatory initiatives on qualified Electronic Chart Systems (ECS). Impacted vessels include non-SOLAS US Vessels such as towing vessels (Subchapter M), small passenger vessels (Sub T/K), workboats, municipal boats and commercial fishing vessels including white boat 6-pack charter boats. If you operate a commercial vessel in U.S. waters that falls under the navigation safety rules in 33 CFR Part 164 (e.g., self‑propelled vessels ≥1600 GT; many towing vessels and vessels in VTS areas), you must carry approved charts/publications or use the accepted electronic equivalents on compliant hardware/software. Failure to comply can lead to deficiencies and civil penalties under Coast Guard‑administered statutes.
Features

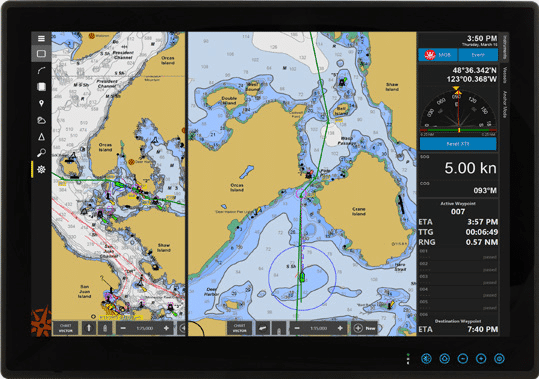

PHT Marine Displays
- IEC60945 certified rugged marine displays from 10″ to 32″.
- Day/Night/Red modes with dim-to-black brightness control.
- Optically bonded anti-glare front glass with optional AR coating.
- IP-rated corrosion-resistant bezel and chassis.
- Multiple input options: DisplayPort/HDMI/DVI/VGA.
- Panel, console, and VESA mounting options.
- Optional high-brightness (SRT) sunlight-readable models.
- Projected capacitive touch and optional remote control.
- Operates in temperatures from -30°C to 85°C.
- Front-panel dimming and power controls.
MPPC Marine Panel PCs
- Flat P-CAP touchscreen displays in 15″, 19″, 24″, and 27″.
- Intel® Core™ i5-1335U 3.4GHz (up to 4.6GHz) processor.
- 16GB RAM with 256GB SSD storage.
- 2x USB 3.0, 2x RJ45 LAN, and 1x RS232/422/485 ports.
- 1x HDMI output and optional 4x NMEA 0183 ports.
- Windows 11 IoT LTSC pre-installed.
- 3-stage ECDIS dimming (Night/Dusk/Day).
- Color-calibrated for ECDIS compliance.
- IP65/IP66 front bezel protection.
- Fanless design with panel/VESA mount options.
MPC-E10-1300 ECS Computer
- Intel® i7 2.4GHz CPU with 16GB RAM and 512GB SSD.
- Multi-video output: DVI, HDMI, and DisplayPort.
- Isolation power protection (1.5KV).
- 8x NMEA 0183 ports and 4x digital I/O.
- DNVGL, IEC60945, and IACS E10 certified.
- Fanless aluminum enclosure with 9–36V DC input.
- Operating temperature range 15–55°C.
- CE/FCC certified with 50W power consumption.
- Table-mount or custom mounting options available.
ECS Controls (Trackballs & Keyboards)
- Fully IEC60945 compliant marine input devices.
- Waterproof IP68 sealed construction.
- 38mm laser trackball with scroll and click function.
- Glove-friendly, vandal-proof operation.
- Removable top for easy cleaning.
- Combo PS/2 and USB connectivity.
- Multiple mounting options: stud or screw mount.
Data Sheet
