MP-3700 Series
A superior fanless system. The MPC-3700 series offers extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability.
It boasts enhanced CPU and graphics performance, wide power and feature scalability, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in extreme temperatures (-25°C~+70°C).
Its has a completely cable-less, one-piece housing design, that’s highly functional and anti-vibration. The MPC-3700 series are ruggedized systems that can operate in harsh environments and are easy to install and maintain.
With built-in over voltage protection (OVP), over current protection (OCP), reverse protection and wide range DC power inputs, the MPC-3700 series offers safety systems designed for all industrial applications.
Features
- LGA 1151 socket for 8th/9th Gen. Intel® CFL-R S Processor (65W/35W TDP)
- Intel® Q370 chipset
- 2x DDR4 2400/2666Hz SODIMM. Max. up to 64GB
- Triple Independent Display by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbEsupporting Wake-on-LAN and PXE
- 2x Full-size mini PCIefor communication or expansion modules, 2x SIM socket
- 4x 2.5” SATA HDD Bay and 1x mSATA with RAID 0, 1, 5, 10 support
- 1x M.2 (M Key, NVMePCIex4, 2280); 1x M.2 (E Key, PCIex2, USB 2.0, 2230)
- 6x RS-232/422/485 (w/ 2x internal), 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C to 70°C (35W CPU); -25°C to 60°C (65W CPU)
- TPM 2.0 Supported
Data Sheet
Explore other Marine Computer Products
Discover our range of marine computer products, engineered for reliability and performance in maritime environments.
MPC-2 Computer

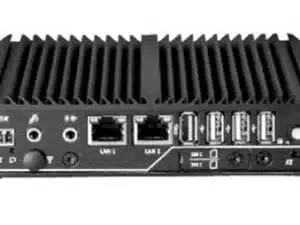

MPC-101 Computer
