A twenty-four-inch marine display can come off a salt-fog test bench scratched, pitted, and creeping rust two seasons before the panel itself is anywhere near end of life. The pixel quality, the touch controller, the power supply, even the cable glands are usually fine. What fails first is the metal frame holding everything together, and on commercial bridges that frame is more often than not the wrong alloy for the duty cycle. The decision to specify a marine display bezel in 316L stainless steel, or to settle for marine-grade aluminum, polycarbonate, or powder-coated mild steel, sounds cosmetic. It is not. It changes corrosion timelines, EMI behavior, weight on the bulkhead, grounding, and how the unit reads under flag-state inspection. This article walks through how to pick the right material for a given vessel, duty cycle, and mounting plan without paying for stainless where it is not earning its keep.
What Materials Show Up On A Marine Display Bezel?
Five materials cover almost every commercial and military marine display sold today. 316L stainless steel is the chloride-resistant grade marine engineers reach for first because the molybdenum content slows pitting in salt spray. 5052 and 6061-T6 marine-grade aluminum, typically hard-anodized, makes up the next tier and dominates protected-wheelhouse mounts because it cuts cleanly, machines for screw bosses without inserts, and weighs roughly a third of stainless. Polycarbonate and glass-reinforced nylon show up on lightweight panel mounts and console overlays where the frame is more cosmetic than structural. Powder-coated mild steel is the budget option, common on inland and brown-water craft, and the option that fails the soonest once salt breaches the coating. Anodized magnesium is a niche choice in defense applications where weight savings matter more than corrosion margin.
Beyond raw material, three construction details matter. Bezel thickness drives stiffness and how the gasket compresses against the chassis. Edge finishing, whether the front is brushed, mirror-polished, or bead-blasted, decides how the chassis reflects helm lighting at night. And the bezel-to-chassis seal, which usually relies on a continuous closed-cell EPDM or silicone gasket, decides whether ingress claims survive the first wash-down.
What does not appear on most product brochures is the actual alloy specification. Vendors love phrases like marine-grade construction or stainless front frame without naming 316L versus 304, or 5052 versus 6063. That distinction is the entire question. On the procurement side, ask for the alloy callout and the temper, and ask whether the back chassis is the same material as the front. A common cost-cutting move is a stainless front bolted onto a cheaper rear enclosure, which fails wherever the two metals meet. The same scrutiny applies when you are reading the rest of a marine monitor spec sheet, since pixel density and brightness numbers tell you nothing about what happens after the third wash-down.
When Does Stainless Steel Actually Earn Its Place On A Marine Display?
Stainless earns its keep when the display lives outside a sealed wheelhouse, when it sits in regular contact with chloride spray, or when the flag-state inspection wants visible evidence that the chassis will outlast the panel. The clearest case is a forward or flying-bridge mount on a commercial vessel, where salt aerosol cycles across the front surface every operating hour and freshwater wash-downs happen on a weekly schedule. 316L tolerates that cycle for the working life of the display. Anodized aluminum slowly chalks and pits at the front-to-gasket interface, then begins to bleed white oxide into the panel seam within the first eighteen months.
A second case is open-deck operations. Fishing vessels with helm displays on the bridge wing, harbor-pilot boats with exposed forward consoles, and offshore service vessels with monitoring stations on the back deck all see salt plus diesel exhaust plus deck chemicals. The deck-cleaning chemistry alone, particularly degreasers and chlorinated wash compounds, will lift powder coat off mild steel and dull anodized aluminum. Stainless resists both. Naval flight decks and amphibious well-decks add hydraulic fluid, JP-5, and fire-suppression foam to the chemical exposure, which is part of why combatant displays are stainless or stainless-clad almost without exception.

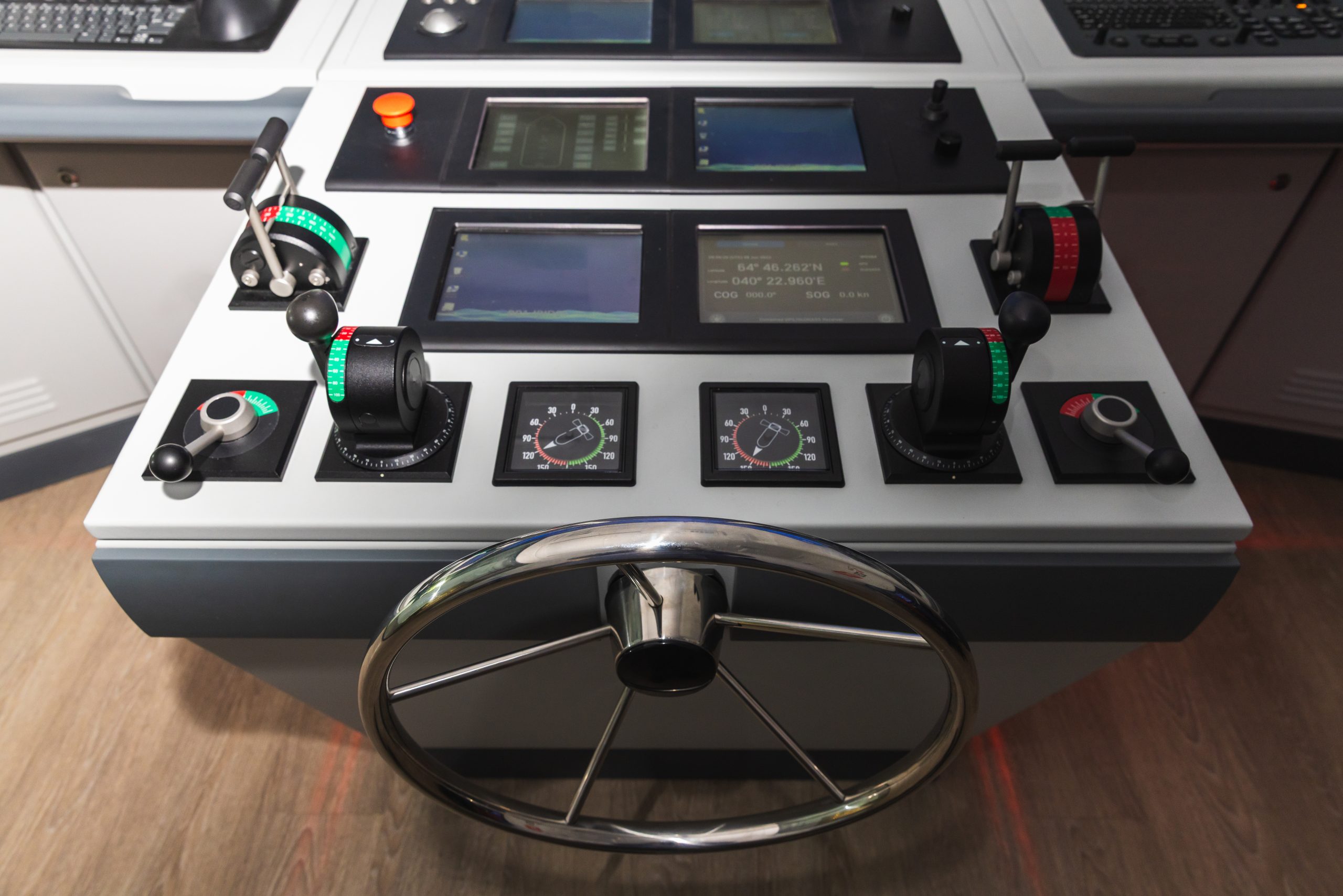

Inside a sealed wheelhouse, the picture inverts. A display mounted in a protected, climate-controlled bridge that the crew wipes down with fresh water once a week will live a normal lifetime in 5052-T3 anodized aluminum. The same is true for engine-room displays mounted in dry control rooms, panel PCs in CCR cabinets, and most superyacht interior monitors. Specifying stainless in those locations adds weight, cost, and lead time without changing the corrosion outcome. Knowing the operating envelope these monitors actually see is more useful than defaulting to the most expensive bezel option on every helm.
There is a flag-state dimension as well. Class societies do not mandate a specific bezel alloy, but type-approval test reports for bridge equipment frequently call out salt-mist exposure to IEC 60945 Section 8.12. Displays that pass with margin tend to be stainless. Displays that pass at the edge of the spec tend to use the next material down. Procurement officers reading the test report for an integrated-bridge contract will see that distinction even when the spec sheet does not call it out.
How Do Salt-Fog And Ingress Tests Separate The Candidates?
The most cited test is ASTM B117, also referenced as ISO 9227, which exposes the unit to a 5 percent sodium chloride mist at 35 degrees Celsius for a stated number of hours. Commercial and military marine displays are typically tested to 240, 720, or 1000 hours. The 1000-hour gate is where a 316L front bezel separates from the rest. Anodized aluminum can pass 240 hours cleanly, often passes 720 hours with minor anodic damage, and usually shows visible pitting before 1000 hours. Powder-coated mild steel rarely clears 240 hours without coating undercutting at any screw boss or edge break.
ASTM B117 is a constant-exposure test, which exaggerates uniform corrosion but understates the cyclic chemistry a vessel actually sees. IEC 60068-2-52 cyclic salt spray and IEC 60068-2-30 damp heat cyclic are the more realistic gates. They alternate salt exposure with humid drying cycles, which is closer to a bridge operating in tropical waters. A chassis that passes both tests at the standard naval severity is the practical procurement floor for commercial bridges crossing chloride-aggressive waters.
Ingress tests are a separate dimension and do not measure bezel material. IP66, IP67, and IP68 tell you the sealing held for the test duration. They say nothing about whether the metal under that seal will be intact after two years of wash-downs. This is why specifying how ingress ratings map to marine duty cycles and a salt-fog grade together produces a more defensible procurement spec than either one alone.
One quiet failure mode worth catching at design review is the galvanic couple between the front bezel and the mounting bulkhead. A 316L front bezel bolted directly to a 5083 aluminum bulkhead, with a marine deck environment in between, sets up a galvanic cell that eats the aluminum bulkhead faster than the stainless itself. The fix is either an isolating gasket, a nylon shoulder washer at every fastener, or a same-metal mounting plate behind the display. Type-approval submissions that ignore this couple end up with maintenance findings during the first dry dock.
What Does A Stainless Bezel Cost You Elsewhere?
Weight is the first tradeoff. 316L runs about 8.0 grams per cubic centimeter, roughly three times aluminum and almost seven times polycarbonate. On a swing-arm mount or an overhead rack, that weight changes the bracket spec, the bulkhead reinforcement, and how the unit behaves under shock. A 27-inch stainless-framed display can weigh 20 to 25 pounds more than the same panel in aluminum, which on a hinged arm above the seated watch officer is not a small consideration.
Electromagnetic compatibility is the second tradeoff, and it usually cuts the other way. A continuous stainless steel front and rear chassis acts as a Faraday surface around the electronics, which simplifies EMI shielding under MIL-STD-461 conducted and radiated emissions tests. Polycarbonate gives you nothing for shielding and forces an internal RF gasket scheme that adds parts and complexity. Stainless also provides a reliable low-impedance ground return path between the chassis and the bulkhead, which matters for both the display and any nearby radar, satcom, or VHF antennas that share the structure. Engineers building bridges to handle a mission-critical environmental test program generally end up at stainless for EMI reasons even when the corrosion case is borderline.
Scratch and dent behavior is the third tradeoff. Stainless scratches readily but does not propagate; a brushed finish will absorb a screwdriver slip with a visible mark that polishes out. Anodized aluminum dents on impact and the anodic layer chips, exposing bare aluminum that begins to corrode immediately. Powder coat chips on contact and unzips from the impact site outward. Polycarbonate cracks under impact and is replace-only. Across a 10-year service life, stainless almost always finishes ahead on visual condition and refurbishment cost.
Acquisition cost and lead time are the last tradeoff. A 316L stainless front typically runs 1.5 to 2.2 times the cost of the same display in anodized aluminum, and the lead time can stretch by four to six weeks on custom orders because the raw stock is less commonly stocked at the mill. For a fleet refit on a tight schedule, that lead-time tail matters. The right answer is rarely stainless on every display. The right answer is matching the bezel material to the exposure each location actually sees, then accepting the cost on the locations that need it.
Where Should Marine Display Bezel Spec Work Begin?
Start with the duty cycle of each mounting location. Walk the vessel, or the design drawings if it is a new build, and label every display location as protected wheelhouse, exposed bridge wing, open deck, naval flight deck, wash-down zone, or interior dry compartment. Pair each location with the salt-fog and cyclic-exposure grade the class society requires for that compartment. Then layer in the mounting plan, since swing-arm weight and overhead-rack shock margins are the second filter. Finally, check the EMI environment around the display, since proximity to radar antennas or high-power VHF can move the chassis material toward stainless purely for shielding margin.
Vendors that publish full alloy callouts, salt-fog hours, and cyclic-exposure results without prompting are the ones to work with. If a quote answers stainless without saying 316L versus 304, or marine-grade aluminum without naming 5052 or 6061, send the spec back with the questions itemized. The Seatronx purpose-built marine display lineup is built around 316L stainless for exposed and commercial-bridge applications and anodized 5052 for protected-wheelhouse builds, with the alloy choice surfaced on the data sheet rather than buried in the chassis drawing.
Frequently Asked Questions
Is a 316L bezel always better than 5052 anodized aluminum on a marine display?
No. 316L outperforms aluminum in exposed and wash-down conditions, but in a protected, climate-controlled wheelhouse the corrosion margin from aluminum is more than adequate for a 10-year service life. The right choice is the one matched to that specific mounting location, the cleaning chemistry the crew uses, and the weight budget on the mount. Defaulting to stainless everywhere wastes capital and adds bulkhead reinforcement work that the duty cycle does not justify.
How long does a powder-coated mild steel bezel actually last at sea?
On a sheltered inland or brown-water vessel with limited salt exposure, a powder-coated mild steel bezel can clear a 5 to 7 year service life if the crew touches up coating chips quickly. On open coastal or offshore duty, the same chassis typically shows undercoat corrosion within 18 to 24 months at any screw boss, gasket edge, or impact point. Once the coating breaches, the underlying steel pits aggressively and the chassis becomes a replace-only component well before the panel reaches end of life.
Does a stainless bezel help with EMI shielding on a marine display?
Yes. A continuous stainless front and rear chassis form an effective Faraday surface around the electronics, which simplifies passing MIL-STD-461 conducted and radiated emissions tests. It also provides a low-impedance ground path between the chassis and the bulkhead, which matters when the display sits near radar, satcom, or VHF antennas. Polycarbonate offers no shielding and forces a separate internal RF gasket scheme, which adds parts and complexity to the design.
How do I tell whether a vendor stainless steel claim means 316L?
Ask for the alloy callout and temper in writing. A real marine vendor will list 316L or 316 with a temper such as 2B or No. 4, plus the gauge in millimeters or inches. If the response is just stainless construction, push back. Also ask whether the rear chassis is the same alloy as the front; a stainless front and a cheaper rear enclosure fails at the seam between them and is a known cost-cutting move that should be caught at procurement.
Will a 316L bezel cause galvanic corrosion on an aluminum bulkhead?
It can, if the two are in direct electrical contact in a salt environment. The fix is an isolating gasket, a nylon shoulder washer at every mounting fastener, or a same-metal mounting plate sandwiched between the display and the bulkhead. Type-approval reviewers look for this couple specifically, and dry-dock maintenance findings often trace back to a stainless display bolted straight to an aluminum support without isolation.
Does the bezel material affect the IP rating of a marine display?
The bezel material does not change the IP rating directly, since IP66, IP67, and IP68 measure the sealing system, not the metal around it. What the front frame does affect is whether the seal holds over years of duty. Aluminum and powder-coated steel can deform around fastener bosses under thermal cycling and lose gasket compression, which causes the IP claim to lapse silently. 316L holds its dimensions and keeps the gasket loaded, which is part of why displays with stainless frames keep their ingress rating longer in field service.
