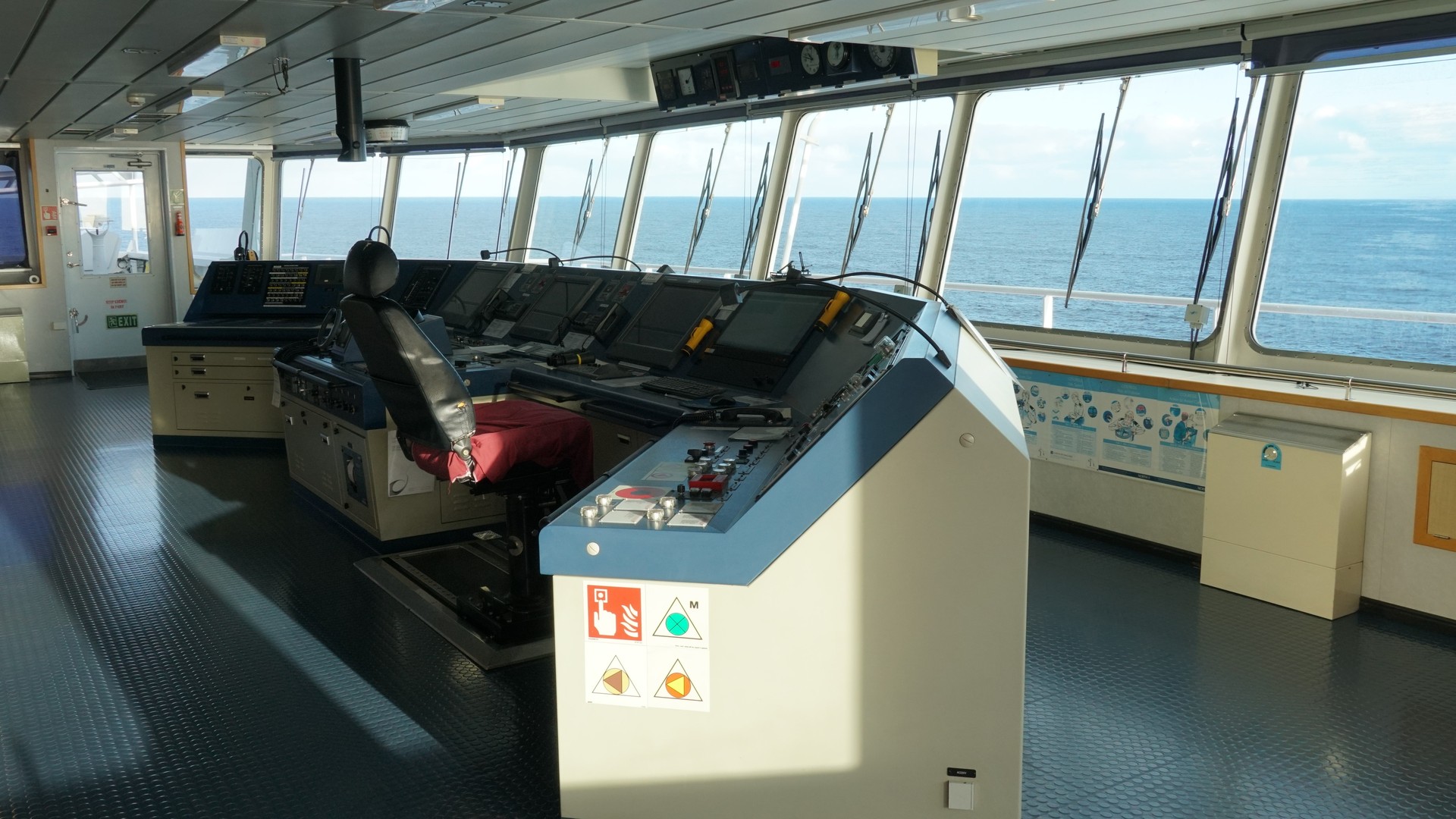

A naval bridge needs more than chart and route information. Modern combatants, patrol craft, and special-mission vessels carry sensors, tactical data networks, and weapon systems whose decision moments live on a different kind of screen. A tactical display is purpose-built to handle that workload: real-time threat tracks, sensor fusion overlays, blackout-mode operation, classified data, and operator inputs that work under EMCON. The decision is not whether a marine vessel has a screen, because every bridge has screens. It is whether at least one of those screens has to behave like a combat console.

What Sets a Tactical Display Apart From a Navigation Display?

A marine navigation display shows the route. ENC charts on the IHO S-57 framework, AIS contacts, GPS position, and a radar overlay tied to a planned voyage. The watchstander’s job is to keep the ship safely on a known track and respond to traffic and weather. That work fits cleanly inside an ECDIS-plus-radar console layout and produces a single set of operator priorities.

A combat console shows the fight. The same hull may carry a 3D air-and-surface radar, an electronic-support measure suite, a hull-mounted or towed-array sonar, an electro-optical and infrared sight, and a tactical data network such as Link 16 or Link 22. Each sensor produces tracks. Each track has classification, threat assessment, kinematics, and time-late. The console fuses those tracks into a single situational picture, lets the operator hook a contact, assign it a level of interest, and pass it forward to gunnery, counter-measure controls, or to a tactical command. That is the role of a defense-grade screen.

The hardware differences follow the role. A bridge route-monitor panel-mounts into an integrated bridge architecture so the route screen sits next to the ECDIS workflow. A combat-information-center console sits below decks in a darkened space with sustained twenty-four-hour watchstanding, night-vision-compatible illumination, and a different ergonomic envelope. Two screens, two missions, one ship.

Which Vessels and Missions Justify a Combat Console?

The most obvious platforms are combatants. Destroyers, cruisers, frigates, and corvettes treat the tactical picture as the whole point of the bridge and the CIC, and every console below decks is purpose-built around that picture. But the procurement envelope is much wider than first-rate warships.

United States Coast Guard cutters in the Sentinel, Bertholf, and Heritage classes carry C4ISR mission packages that need tactical data presentation for counter-narcotics, counter-illegal-fishing, and migrant interdiction missions. Offshore patrol vessels operated by allied navies, border-guard fleets, and Special Operations craft typically run a combined civil-and-tactical console set. Mine countermeasure vessels, anti-submarine warfare hulls, and unmanned-surface-vehicle mothership platforms all need a console that can render mission-system overlays in real time alongside a chart view.

Even auxiliary platforms get tactical consoles when the mission demands it. Hydrographic survey ships, salvage and rescue tugs, and oceanographic research vessels working for Navy customers carry classified sensor packages and need a console that can host them without putting non-ruggedized hardware on combatant platforms. The procurement question is not really which class of ship. It is whether any mission on that hull will display a Link 16 track, a sensor product over a classified network, or a fire-control symbol.

What Spec Differences Define a Tactical Display?

Three buckets define the hardware gap between a navigation display and a tactical one.

The first is light and visibility under combat conditions. A combat console has to dim to true blackout without the backlight bleeding daylight into a darkened CIC, and it has to be compatible with night-vision goggles. NVIS Class B per MIL-STD-3009 is the usual procurement requirement: the panel’s emission spectrum must not blind a Generation III tube, and the chassis must not leak white light onto operator faces or window glass. A consumer panel cannot meet this. The colored-filter coatings and the LED-spectrum gating are designed in at the optical-stack level, not added with a screen protector after the fact.

The second is electromagnetic compatibility. A warship topside is a hostile RF environment. S-band and X-band radars, high-power HF and UHF radios, and electronic-warfare emitters all radiate within meters of every console. The display has to survive that without distortion and without re-radiating noise back into the antenna farm. MIL-STD-461 governs the test program: CE101 and CE102 for conducted emissions, RE101 and RE102 for radiated emissions, CS114 for conducted susceptibility, RS103 for radiated susceptibility. The same screen will also see a mission-critical environmental test program covering MIL-STD-810 method 506 driving rain, method 509 salt fog, method 514 vibration, and MIL-S-901D shock, and is expected to keep operating, not just survive.

The third is power and form factor. Surface combatants run on MIL-STD-1399-300 60 Hz alternating current, MIL-STD-1399-680 28 volts DC, or MIL-STD-704 400 Hz busses depending on the platform. The display must accept whatever the platform actually supplies, ride through brownouts and surges, and bring its inrush below shipboard breaker thresholds. Panel-mount dimensions follow MIL-DTL-901E or platform-specific console standards rather than commercial rack units. Aspect ratios trend toward 5:4 and 16:10, because the symbology overlays were drawn for square workspaces, not 16:9 entertainment displays.

How Does a Combat Console Connect To Sensors and Combat Systems?

A combat-grade console is rarely a passive video receiver. It hangs off the platform’s tactical bus and pulls feeds from every sensor that matters for the watch.

On older hulls, that bus is MIL-STD-1553B, a 1 Mbps redundant serial channel used for radar, navigation, and weapon-system messaging. Newer hulls move to Ethernet at one or ten gigabit, with video-over-IP standards such as SMPTE ST 2110, ASTERIX for radar contact streaming, and Real-Time Streaming Protocol for camera feeds. Tactical data networks add another tier: Link 16, Link 22, Cooperative Engagement Capability, and classified IP networks all land on the same console family but in different windows.

Operator inputs follow a different logic from a touchscreen-first navigation display. Sustained-watch tactical workflows favor a purpose-built bridge trackball plus a dedicated keyboard with mission-coded function keys. A gloved hand has to be able to hook a contact, drag a hostile-track classification box around it, and pass it to a fire-control solution without ever lifting away from the screen. Touchscreens have a role on tactical consoles, for example paged-mode overlays on small displays, but the primary workflow still runs on rugged pointing devices designed for sustained use.

Redundancy is also different. A bridge usually has one or two ECDIS screens because failure mode means falling back to paper charts. A combat-console redundancy plan is dual-feed sensors, hot-standby graphics processors, fail-soft switching to backup CIC stations, and a documented degraded-mode operating procedure. If a tactical console fails, the mission does not pause.

How Do You Evaluate a Defense Display Vendor?

Most of the evaluation work is paperwork, not screens. A defense procurement office is buying the documentation pack at the same time as the hardware, because the documentation is what proves the screen will survive its mission profile.

The required documents typically include a MIL-STD-461 test report with curves, MIL-STD-810 test report by method, MIL-S-901D shock certificate with grade and class, NVIS certification letter referencing MIL-STD-3009, an EMC test report against the platform’s specific addendum, and a thermal-and-airflow analysis showing the chassis can run the worst-case duty cycle. Add a power-quality compliance statement against MIL-STD-1399 or MIL-STD-704, an export-control classification (ECCN), and a Berry Amendment compliance letter for any United States Department of Defense purchase.

Sustainment is the second axis. Defense platforms stay in service for thirty years; the console has to outlast at least one mid-life refit. The vendor should provide an obsolescence-management plan, a qualified-source list for critical components, a drawing package including 3D STEP and interface control documents, and DFAR 252.227-7013 data rights so the government can re-procure spares without single-vendor lock-in. ITAR and EAR classification, TAA compliance, Buy American Act compliance, and Cybersecurity Maturity Model Certification all need to be addressed in writing before any production order ships.

When the paperwork lines up, the hardware decision narrows to fit, form, and function. The purpose-built military display lineup maps to common console cutouts so an integrator can drop a tactical display into an existing CIC console without redesigning the panel. That is usually the difference between a six-month integration and a two-year program-of-record line item.

Frequently Asked Questions

What is a tactical display in naval terms?

A tactical display is a defense-grade console screen built to present combat-system information, classified sensor data, and tactical-data-network tracks in real time. It is purpose-engineered for warship environments: NVIS-compatible for night operations, MIL-STD-461 EMI-hardened against shipboard radars and electronic-warfare emitters, MIL-STD-1399 or MIL-STD-704 shipboard power, and MIL-S-901D shock and MIL-STD-167 vibration qualified. It is what an operator hooks tracks on, not what a navigator plans a route on.

Is a tactical display the same as an ECDIS?

No. An ECDIS is a type-approved electronic chart display and information system regulated by IMO performance standard MSC.232(82); it shows charts, AIS, and a radar overlay for safe navigation. A tactical console handles combat-system inputs, classified networks, and threat-track presentation. A few platforms run both functions on the same panel under different software modes, but the certification trail, the operator workflow, and the symbology library are different worlds.

Does a tactical display need NVIS compatibility?

Almost always. If the platform operates in EMCON or in any condition where the bridge crew uses Generation III night-vision tubes, the panel must meet NVIS Class A or Class B per MIL-STD-3009. The filter, the LED backlight, and the chassis sealing have to be designed for it. A retrofit gel or film over a commercial panel will fail the certification because the white-light leakage and the out-of-band emission spectrum are not controllable after the fact.

What shipboard power input do these consoles use?

It depends on the platform. United States Navy combatants typically use MIL-STD-1399-300 115 V or 440 V 60 Hz alternating current, with some subsystems on MIL-STD-1399-680 28 V DC or MIL-STD-704 400 Hz. Coast Guard cutters and OPVs are usually 115 V 60 Hz. Smaller patrol craft and unmanned-surface-vehicle motherships often use 24 V or 12 V DC. The display vendor should publish a power-quality compliance statement against the actual platform busses, not just a generic input range.

Can a single console serve both navigation and tactical roles?

On small combatants and patrol craft, yes. A multi-function rugged console can carry an ECDIS partition for navigation watch and a tactical partition for combat-system inputs, switched by classification level and operator role. Larger warships keep the functions separated because the watch is staffed by different rates, the workflows interfere with each other under stress, and the data-rights chain on classified inputs is easier to defend when the hardware is dedicated.

How long does a defense display usually stay in service?

Typical service life is twenty to thirty years on the hull, with a mid-life refit at the halfway mark. That is why obsolescence-management documentation, data-rights packaging, and a qualified-source list matter more than peak-spec performance at the time of delivery. A console that ships in year one needs to be re-procurable as a spare in year fifteen and supportable for failure analysis in year twenty-five.

What is the difference between a CIC console and a bridge combat screen?

Both render the same tactical picture, but the operator workflow and the ergonomics differ. A combat-information-center console is below decks in a darkened space and runs the primary fight: sensor fusion, threat assessment, weapon assignment, and external coordination. A bridge combat screen is on the bridge wing or at the conning officer’s station and presents a condensed tactical picture for ship-handling decisions, watch coordination, and rules-of-engagement context. Same data, different decision moment.

Where Should Tactical Display Selection Begin?

Start with the platform’s mission profile and the actual interface control documents for every sensor and network that has to land on the screen. From there, the spec falls out: NVIS class, MIL-STD-461 addendum, MIL-STD-1399 or MIL-STD-704 power class, shock and vibration grade, console cutout, and aspect-ratio family. When those are pinned down, the vendor short-list is usually three to five names, and the long-pole item is documentation, not parts. A well-specified procurement closes in months. An under-specified one runs for years.
